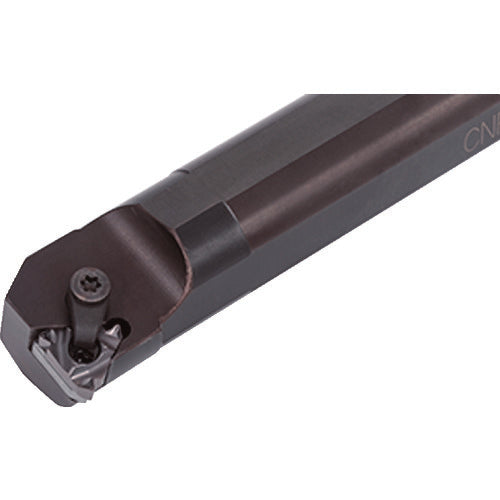

Tungaloy ST type thread cutting holder, internal diameter TAC bit CNR0040T27 1 piece

Catalog number: CNR0040T27 Features: ●The unique combination of the clamp and the insert hole entrance holds the insert firmly and with high precision. Applications: ●Holder for internal diameter processing. Specifications: ● Total length (mm): 300 ● Shank diameter (mm): 40 ● Minimum cutting diameter (mm): 46 ● Neck length (mm): 60 ● Lead angle (°): 1 ● Hand: Right ● Shank material: Steel ● Machine side mounting diameter (mm): 40.000 ● Reference height (mm): 26.90 ● Reference length (mm): 300.00 ● Head length (mm): 60.0 ● Shank height (mm): 37.0 ● Shank width (mm): 38.5 ● Axial rake angle (Axial rake) (°): 1.0 ● Insert size used (mm): 27 ● Clamp-on type internal thread cutting tool Material/Finish: ● Shank: Steel Set contents/Accessories: ● Insert clamp and bolt are included in the set. ● The shim is equipped with a screw to secure it to the shank. Note: ● The standard shim is compatible with both left and right handed tools. Use the front or back depending on the handedness. Use a right-handed insert (**IR...) for a right-handed holder (CNR...) and a left-handed insert (**IL...) for a left-handed holder (CNL...).
