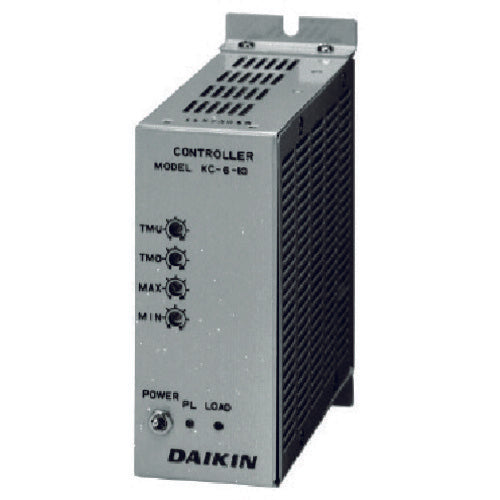

Daikin open loop control driver KC-6-10 1 unit

Catalog number: KC-6-10 Features: ● Optimally controls electromagnetic proportional control valves with open loop control system. Specifications: ● Power supply (V): AC100, AC200, AC220 (50/60Hz) ● Width (mm): 50 ● Depth (mm): 125 ● Height (mm): 145 ● Applicable load: Proportional solenoid (DC24V) ● Command input: DC0-5V or 1kΩ potentiometer ● Output current: 0-850mA (average value indication) ● Power consumption: Maximum 32VA ● Input impedance: 50kΩ ● Ambient temperature during use: 0-55°C (no freezing) ● Ambient humidity during use: 25-90%RH ● Trimmer adjustment: MIN 0-400mA or more (when input is 0V), MAX 850-300mA or less (when input is 5V) ● Response time: TMU 0.05 or less to 3.5 seconds or more (at maximum output), TMD 0.05 or less to 3.5 seconds or more (at maximum output)
