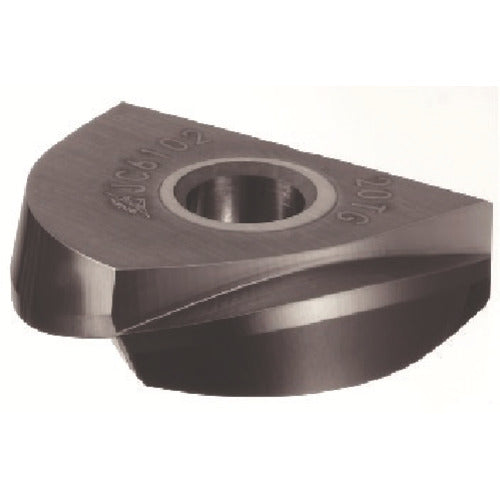

Dijet Mirror Ball Tip DH102 BNM-100-TG 2 pieces

Catalog number: BNM-100-TG Features: ●This is an insert for finishing machining of the high-precision replaceable blade ball end mill "Mirror Ball BNM/MBN type". It can achieve high-precision finishing machining equal to or higher than that of solid ball end mills. The tip R accuracy is ±6μm or less, and the R accuracy when assembled into the holder is ±10μm or less. ●A wide variety of insert shapes and materials are available to handle all types of work materials. ●The TG type uses the new material "DH102", which is a combination of the new PVD coating "DH Coat" for high-hardness materials and high-speed machining and fine-grained carbide alloy for high-hardness materials. The negative blade shape achieves a long life even in high-speed machining of high-hardness materials over 60HRC. Uses: ●Cutting materials: Hardened steel (50HRC to 70HRC), cast iron, ductile cast iron ●For shape and copy machining finishing Specifications: ●Compatible holder: MBX100/BNM()-10 type ●Number of teeth: 2 ●R diameter (mm): 5 ●2-blade ●Material: DH102 ●R dimension (mm): 5 ●Number of teeth (pieces): 2 ●Blade diameter (mm): 10 ●Surface treatment: DH coat ●Tip for mirror ball ●Tool diameter: φ6 (R3) to φ32 (R16) Φ6 (3R) and Φ8 (4R) shank type main body used, Φ10 (5R) to Φ32 (R16) modular type and shank type main body used Material/Finish: ●Carbide alloy
