Dijet Mirror Ball Tip DH108 BNM-300-SS 2 pieces

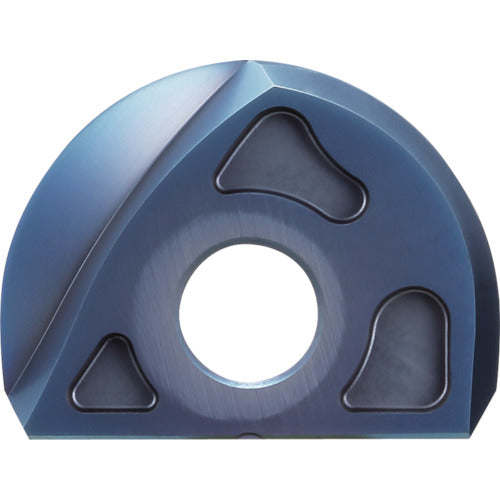

Catalog number: BNM-300-SS Features: ●This is an insert for finishing machining of the high-precision replaceable tip ball end mill "Mirror Ball BNM/MBX type". It can achieve high-precision finishing machining equal to or higher than that of solid ball end mills. Tip R accuracy is ±6μm or less, and R accuracy when assembled into the holder is ±10μm or less. ●A wide variety of insert shapes and materials are available to handle all types of work materials. ●The sharp S-shaped blade is ideal for high-speed finishing machining. Uses the new general-purpose coating material DH108. It enables stable machining and improved life for a wide range of work materials, from carbon steel to difficult-to-cut materials. Uses: ●Cutting materials: carbon steel, alloy steel, cast iron, stainless steel, pre-hardened steel, hardened steel (up to 60HRC), titanium alloy, heat-resistant alloy ●For shape and copy machining finishing Specifications: ●Compatible holder: MBX300/BNM()30-type ●Number of teeth: 2 ●Material: DH108 ●R dimension (mm): 15 ●Surface treatment: DH coat ●Number of teeth (pieces): 2 ●Blade diameter (mm): 30 ●Tip for mirror ball ●Tool diameter: φ6 (R3) to φ32 (R16) Φ6 (3R) and Φ8 (4R) shank type bodies used, Φ10 (5R) to Φ32 (R16) modular type and shank type bodies used Material/Finish: ●Carbide alloy
