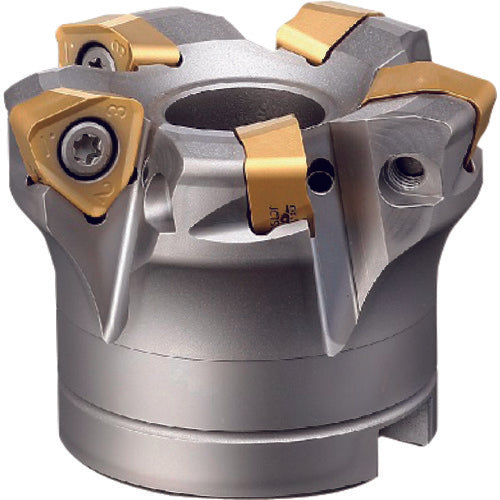

Dijet High Feed Cutting Cutter with Replaceable Tips SKS Extreme Bore Type 5 Blades φ63 Hole Diameter 27mm EXSKS-5063R-27 1 Unit

Catalogue number: EXSKS-5063R-27 Features: ●Next-generation high-feed cutter that realizes extremely high-feed machining. ●Achieves a high feed rate of fz=2mm/t per tooth with a maximum axial depth of cut of 3mm. ●Economical chip with 6 corners on both sides. Applications: ●For high feed rates. Specifications: ●Number of teeth CICT (pieces): 5 ●Cutting diameter DC (mm): 63 ●Total length OAL (mm): 50 ●Compatible chip: WNMU090720ZER-PM ●Blade diameter (mm): 63 ●Number of teeth: 5 ●Number of teeth (pieces): 5 ●Total length (mm): 50 ●Mounting diameter (mm): 48 Material/Finish: ●Iron
