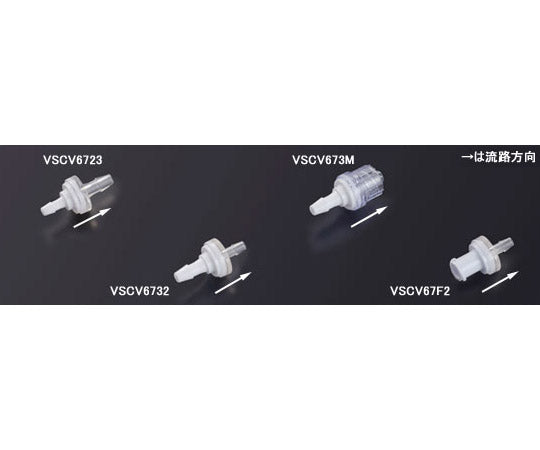

Diaphragm type low pressure check valve 2.5mm⇒Male lock 1 bag (5 pieces) VSCV672M 1 bag (5 pieces)

This is a backflow prevention connector with a built-in diaphragm valve that only allows liquids or gases to pass in one direction. DEHP and latex free silicone rubber diaphragm valves comply with United States Pharmacopoeia USP Class VI and ISO 10993. The "F" in the shape indicates a female Luer hub, and the "M" indicates a male Luer lock. The material indicated is SAN, which stands for styrene-acrylonitrile resin, and ABS, which stands for ABS resin. Non-disassembleable, heat resistant up to +80℃, gamma ray and EOG sterilizable. Cracking pressure 0.6kPa or less, maximum back pressure 800kPa. Sold in bags of 5. Connection port outer diameter (shape) and flow path Inlet → Outlet: 2.5mm: 3/32" → M Material Inlet→Outlet: White ABS→Transparent SAN Flow rate (mL/min): 150-300 Size(mm): 12×24L Quantity: 5 pieces
