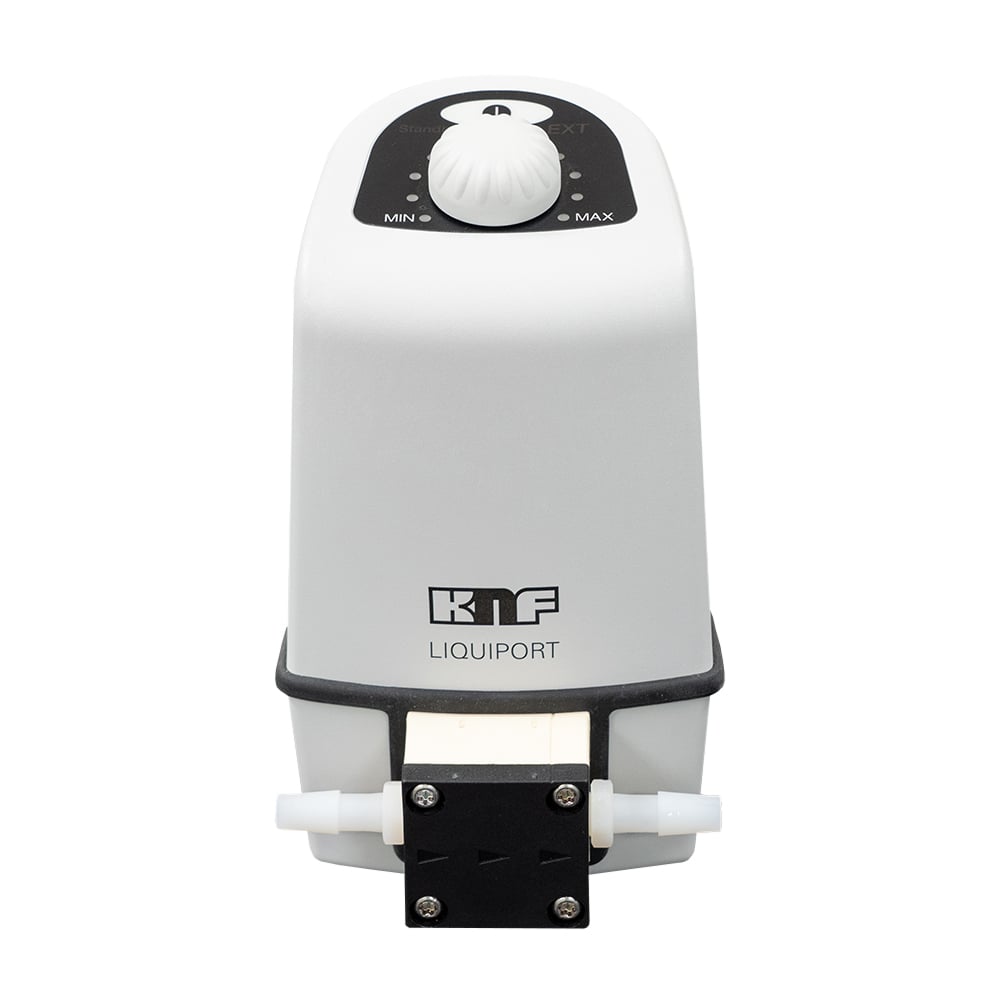

Diaphragm type liquid pump 1300mL/min NF100TT.18RC 1 unit
Diaphragm type liquid pump 1300mL/min NF100TT.18RC 1 unit
Regular price
¥205,700
Regular price
Sale price
¥205,700
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

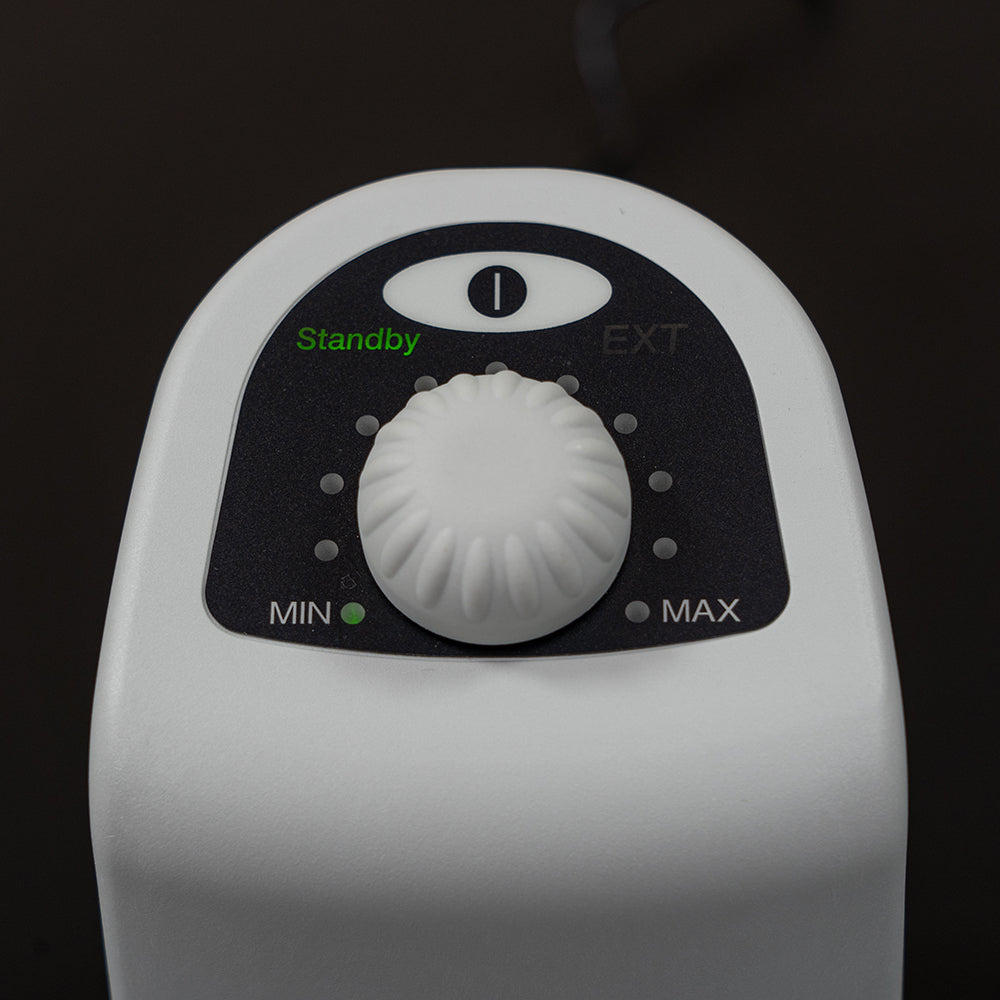

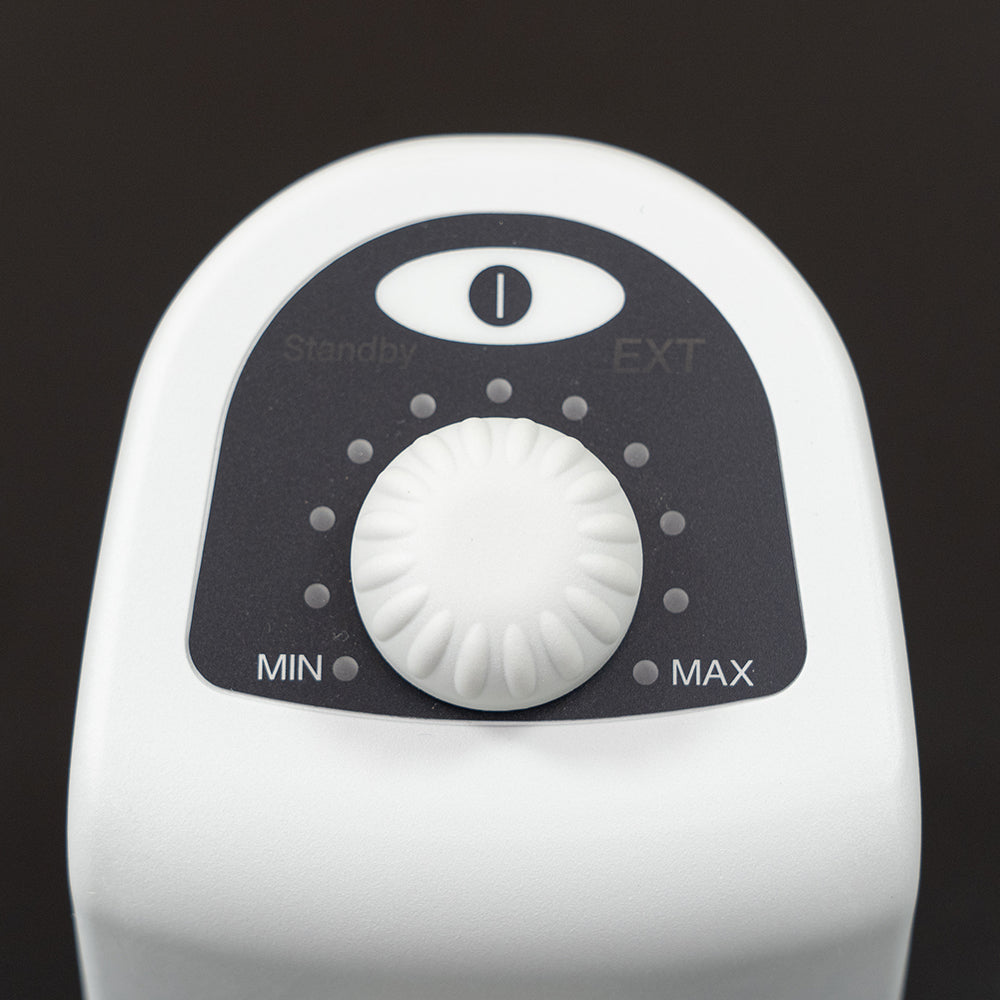

The flow rate can be adjusted using a dial.
It has excellent corrosion resistance.
Comes with a 3-year manufacturer's warranty.
The chemical-resistant type is compatible with many acids, alkalis, and organic solvents. Connection joint diameter: φ8mm
Maximum suction lift: 3m
Maximum discharge head: 10m
Control method: Manual or external
Wetted parts material: Pump head/PVDF, valve/FFPM, diaphragm/PTFE coating
Power supply: 100-230V 50/60Hz, plug type: 2P
Size: 130 x 99 x 177 mm
Weight: 1.0kg
Maximum flow rate (L/min) (water temperature 20℃, no load): 0.2 to 1.3L/min
Thermal switch: Yes
Expected lifespan: approximately 10,000 hours
