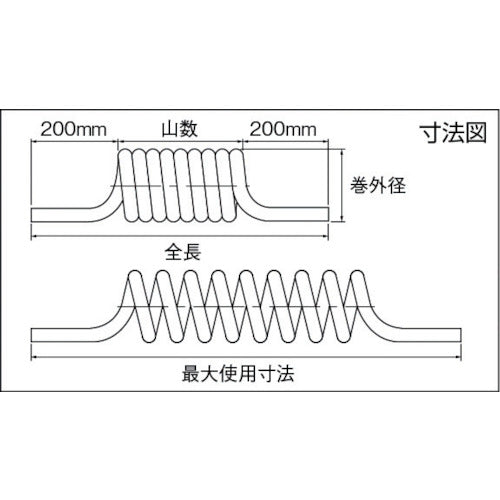

Catalog number: 2-MPS-4-10S Features: ●2-core tube for compact in/out piping. ●The tube is bound into multiple cores and processed into a coil, making it ideal for use in the moving and expanding parts of pneumatic equipment. Specifications: ●Coil diameter (mm): 21 ●Color: transparent, blue ●Hose inner diameter x outer diameter (mm): 2 x 4 ●Usage range (m): 0.658 ●Total length (mm): 486 ●Coil length (mm): 86 ●Outer diameter (mm): 4 ●Inner diameter (mm): 2 ●Number of cores: 2 ●Fluid used: Air ●Fluid temperature: -5 to 60°C ●Usage pressure: 0.8MPa ●Usage vacuum pressure: -100kPa Material/Finish: ●Polyurethane
