千代田通商(株)

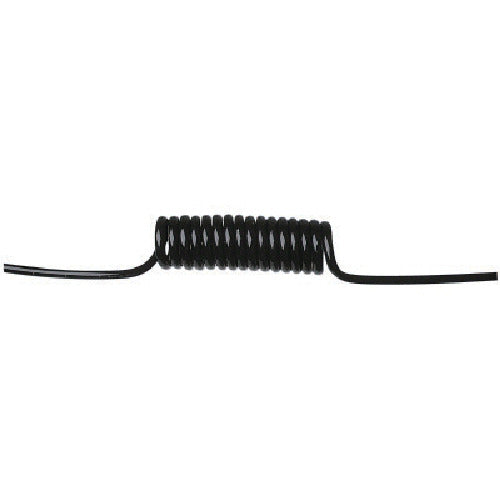

Chiyoda Touch Spiral Tube 10mm/Usage Range 900mm TPS-10-10 1 piece
Chiyoda Touch Spiral Tube 10mm/Usage Range 900mm TPS-10-10 1 piece
Regular price
¥3,324
Regular price
Sale price
¥3,324
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: TPS-10-10 Features: ● Uses polyurethane resin, giving it excellent flexibility. ● Uses a touch tube with high outer diameter precision. ● Available in 10 colors. ● Custom made to order, can accommodate your desired size (length x coil diameter). Please contact us. Applications: ● Various air piping ● Moving parts Specifications: ● Usage range (m): 0.9 ● Outer diameter (mm): 10 ● Inner diameter (mm): 6.5 ● Fluid used: Compressed air ● Standard color: Black ● Roll outer diameter (mm): 52 ● A dimension (mm): 500 ● Usage range (mm): 900 ● Fluid temperature (℃): -5 to 60℃ ● Usage pressure: Compressed air 0.8MPa, vacuum pressure -100KPa Material/Finish: ● Body: Polyurethane
