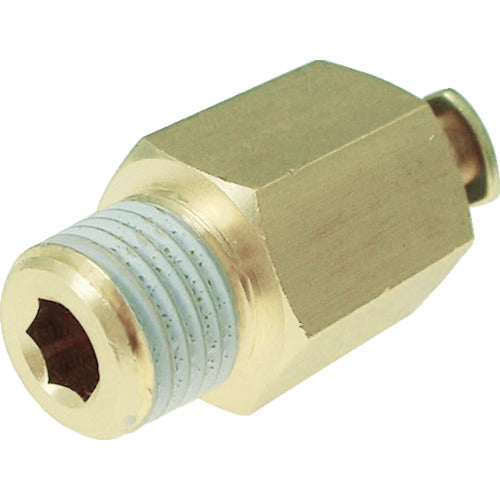

Chiyoda Tube Fitting (Elbow) Touch Connector Nipple Connector (Metal) Applicable Tube Outer Diameter D: 12mm Connection Diameter: R1/2 CKN-12-04 1 pc

Catalog number: CKN-12-04 Features: ● Excellent durability (metal type) and patented unique structure, with excellent results in durability and pull-out strength tests (compared to our other products). ● Ideal for piping welding jigs, etc. ● Tube material can be selected. Applications: ● Piping welding jigs, etc. Specifications: ● Applicable tube outer diameter D (mm): 12 ● Connection port size: R1/2 ● Hexagonal face size (mm): 21 ● Operating pressure: 1 MPa (air), 0.3 MPa (water) ● Fluid used: air, water ● Fluid temperature (℃): -5 to 60℃ (air), 5 to 40℃ (water) Material/Finish: ● Body: Brass ● Sealing rubber: Nitrile rubber (NBR)
