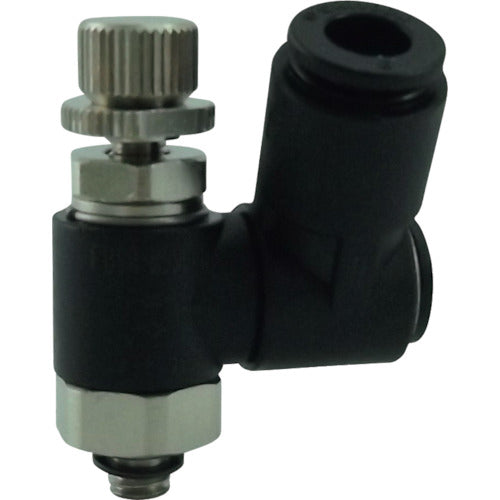

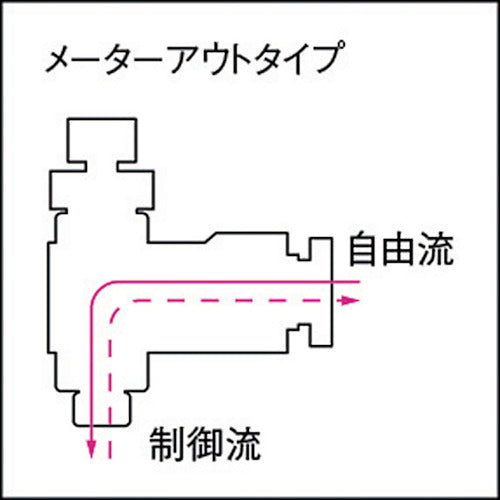

Catalog number: FB6R-M5SC-O Features: ●Flame-retardant PBT resin is used as standard to prevent accidents in welding environments. ●The needle valve has a high rotation speed, allowing smooth speed control. Specifications: ●Connection diameter: M5 x 0.8 ●Applicable tube outer diameter D (mm): 6 ●Usable fluid: Air ●Usable temperature range: -5 to 60°C (no freezing) ●Usable pressure: 0.05 to 0.7 MPa ●Meter-out type Materials/Finish: ●Resin parts: Flame-retardant polybutylene terephthalate (PBT) ●Metal parts: Brass + nickel plating ●Seal rubber: Nitrile rubber (NBR)
