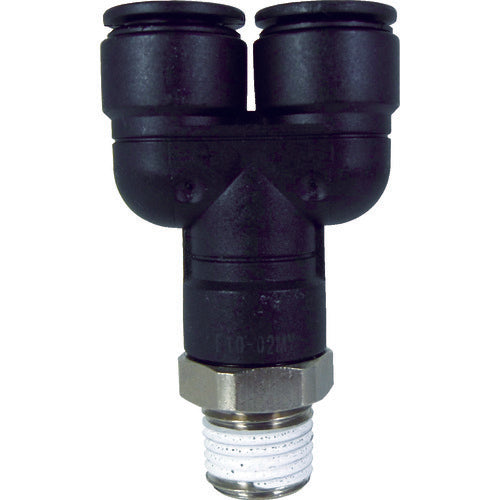

Chiyoda Five Male Branch Y 10mm R1/4 F10-02MY 1 piece

Catalog number: F10-02MY Features: ● Uses PBT resin to prevent fire spread accidents such as spattering. ● Achieves lightweight design for the first time in pneumatic general-purpose fittings. Applications: ● Various air and water piping. Specifications: ● Applicable tube outer diameter D (mm): 10 x 10 ● Connection port size: R1/4 ● Hexagonal face size (mm): 17 ● Operating pressure: 1 MPa (air), 0.3 MPa (water) ● Operating fluid: air, water ● Fluid temperature (℃): -5 to 60℃ (air), 5 to 40℃ (water) ● Fluid temperature (℃): -5 to 60℃ (air), 5 to 40℃ (water) Material/Finish: ● Body: Flame-retardant polybutylene terephthalate (PBT) ● Sealing rubber: Nitrile rubber (NBR)
