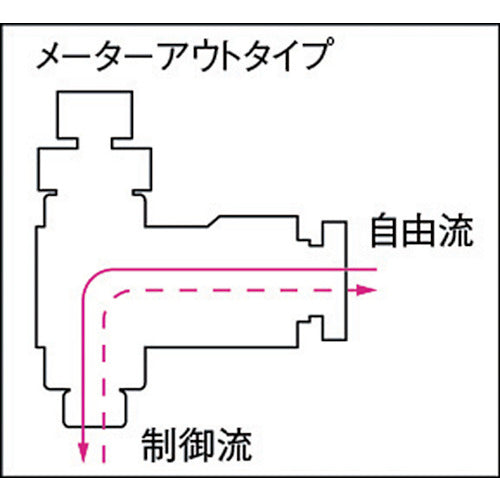

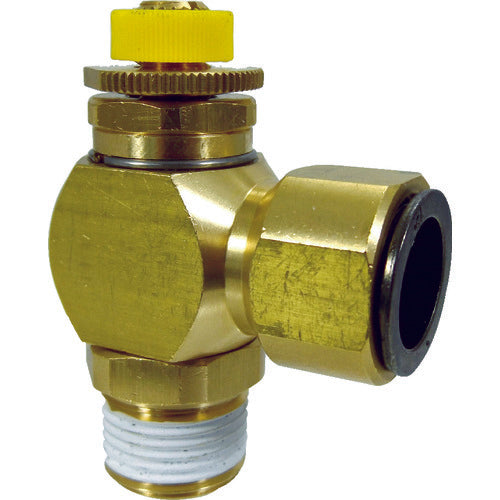

Catalog number: 12-03SC-O Features: ●The body is made of metal, so it is resistant to spattering. Specifications: ●Connection diameter: R3/8 ●Applicable tube outer diameter D (mm): 12 ●Fluid used: Air ●Operating temperature range: -5 to 60°C (no freezing) ●Operating pressure: 0.05 to 0.7MPa ●Meter-out type Materials/Finish: ●Resin parts: Polyacetal ●Metal parts: Brass, phosphor bronze ●Seal rubber: Nitrile rubber (NBR)
