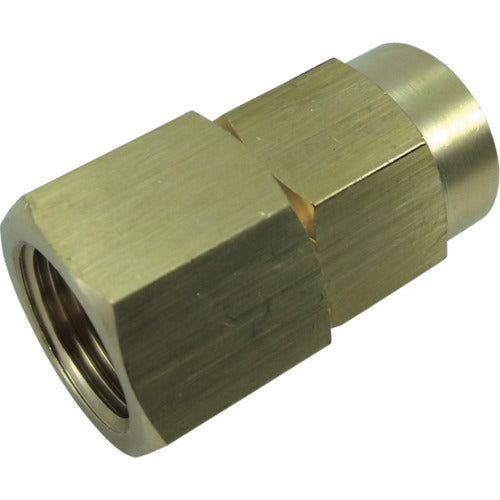

Chiyoda Hose Socket 12mm RC3/8 H8-3F 1 pc

Catalog number: H8-3F Features: ● Tightening type with a cap nut. Specifications: ● Connection diameter D: Rc3/8 ● Hexagonal side (mm) H1: 21 ● Hexagonal side (mm) H2: 19 ● Type: Hose socket ● Fluid used: Air, water ● Compatible tube outer diameter x inner diameter (mm): 12 x 8 ● Fluid temperature (℃): -5 to 60℃ (air), 5 to 40℃ (water) ● Operating pressure: 1MPa Material/Finish: ● Body: Brass
