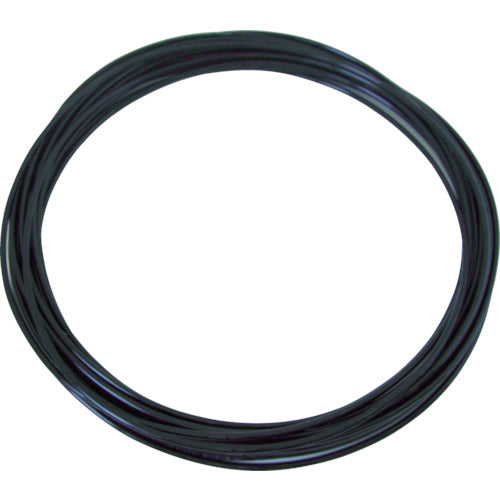

Chiyoda Polyurethane Tube Mega Touch Tube Outer Diameter 10mm / Total Length 20m Black Black MTP-10-20 1 Roll
Chiyoda Polyurethane Tube Mega Touch Tube Outer Diameter 10mm / Total Length 20m Black Black MTP-10-20 1 Roll
Regular price
¥4,884
Regular price
Sale price
¥4,884
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: MTP-10-20 Features: ●High flow rate type. ●The outer diameter remains the same, but the inner diameter is larger than previous models (excluding MTP-4). Specifications: ●Color: Black ●Outer diameter (mm): 10 ●Inner diameter (mm): 7.5 ●Minimum bending radius (mm): 30 ●Usable fluid: Air ●Total length (m): 20 ●Fluid temperature (℃): -5 to 60℃ ●Usable pressure: 1MPa ●Usable vacuum pressure: -100kPa ●Burst pressure: 4MPa Material/Finish: ●Polyurethane
