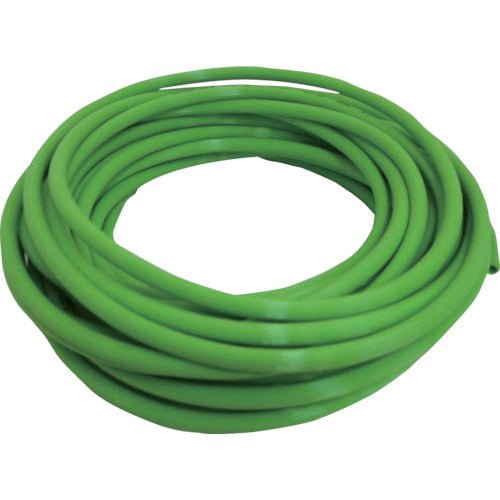

Chiyoda DH Braided Hose 11 x 16 mm/20 m DH-11-20 1 roll

Catalogue number: DH-11-20 Features: ●Polyurethane hose made of soft polyurethane. ●Vertical stripes are applied to the surface of the hose to reduce contact with the ground and make it easier to slide. Applications: ●Air piping in factories ●Piping for air tools Specifications: ●Color: Light green ●Outer diameter (mm): 16 ●Inner diameter (mm): 11 ●Total length (m): 20 ●Thickness (mm): 2.5 ●Fluid used: Air ●Maximum operating pressure (MPa): 1.5 ●Allowable bending radius: (room temperature) 65 ●Fluid temperature (℃): -5 to 60℃ ●Operating pressure: 1MPa Material/Finish: ●Polyurethane
