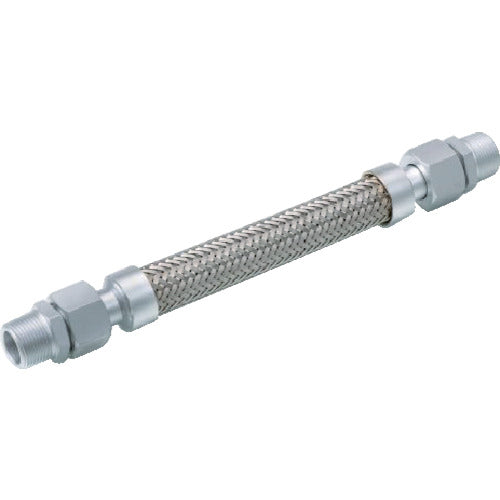

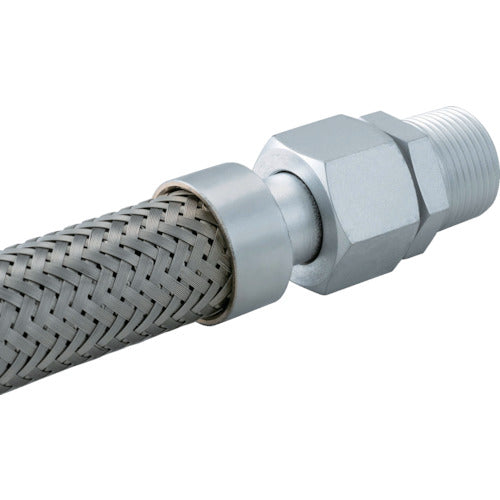

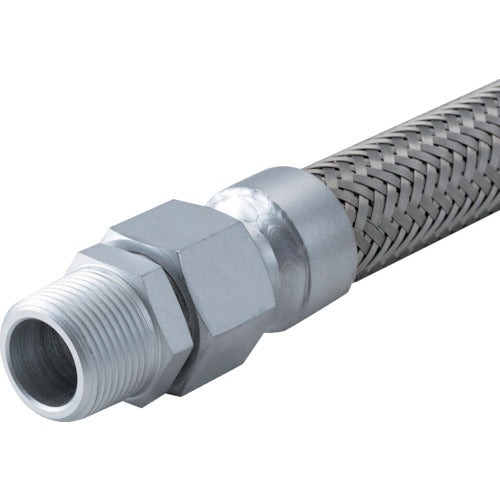

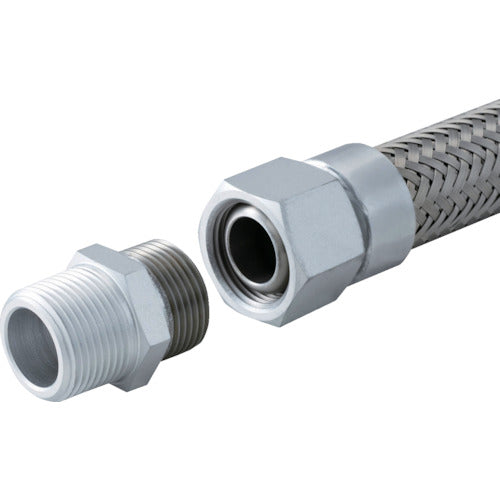

Technoflex Cap Nut Adapter Type Flexible Hose S225T-10AX300L Male x Male Adapter SS400 S225T-10AX300L MXM SS400 1 pc

Catalog number: S225T-10AX300L MXM SS400 Features: ● Cap nut type joints are welded. ● Metal seal type, no packing required. Applications: ● For aligning pipes. ● For absorbing thermal displacement of pipes. ● Countermeasures against subsidence and earthquakes. ● For absorbing repeated mechanical displacement. Specifications: ● Nominal diameter A: 10 ● Nominal diameter B: 3/8 ● Total length (mm): 300 ● Maximum operating pressure (MPa): 8.1 ● Operating temperature range (℃): 100 ● Connection method: Tapered male thread (R) ● Compatible fluids: Water, oil, air, gas, etc. (excluding corrosive fluids) ● Maximum operating pressure: 1MPa ● Applicable fluids: Water, oil, air, gas, etc. (excluding corrosive fluids) ● Operating temperature range: 0 to 350℃ ● Connection method: Tapered male thread (R) Material/Finish: ● Flexible part: Stainless steel (SUS304) ● Joint part: Steel (SS400)
