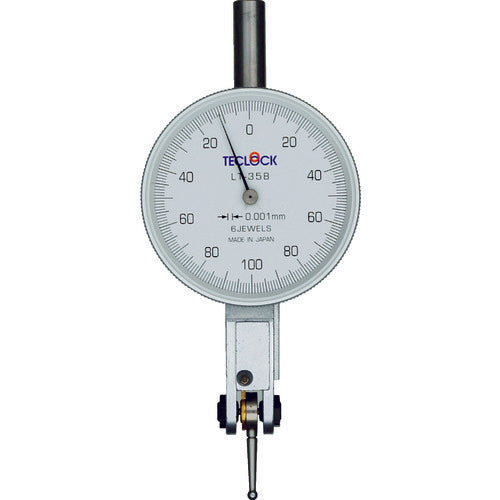

Tecrock Lever Test, Measurement Range 0-0.20mm LT-358, 1pc

Catalog number: LT-358 Features: ●The auto-clutch mechanism without a switching lever automatically switches the measurement direction between forward and reverse. ●The probe and pointer are non-magnetic, so they are not affected by magnetism. ●The probe can be set to an angle of 220° arc. ●Compared to dial gauges, it has better sensitivity to minute dimensional displacement. Applications: ●For various measurements such as outside, inside, groove, centering, etc. Specifications: ●Measuring range (mm): 0-0.20 ●Minimum display (mm): 0.001 ●Scale specifications: 0-100-0 ●Mounting shaft diameter (mm): 6 ●Measuring force (N): 0.25 or less ●Dial diameter (mm): 38.4 ●Probe length (mm): 15.0 ●Auto-clutch type ●Ultra-precision type
