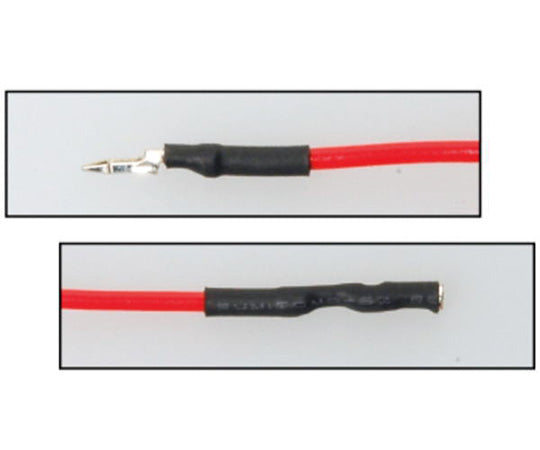

□This is a test wire with a female-male terminal type.

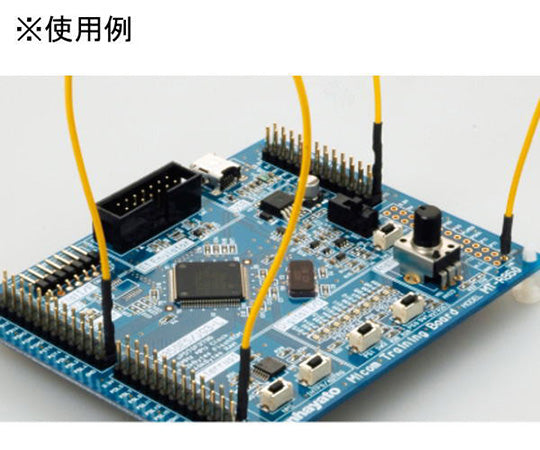

The male side can be inserted into the through hole of the board.
The female side can be inserted into a pin header.

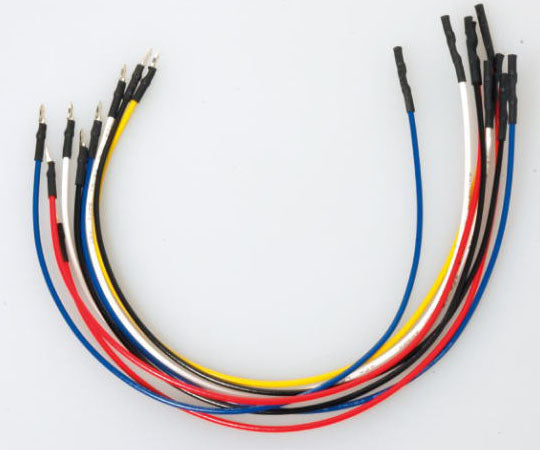

□There are 5 colors: red, yellow, blue, white, and black, with 2 of each color, for a total of 10 pieces. Contact male side) Brass, tin-plated
Female side) Phosphor bronze, nickel base, gold plating (contact area)
Lead wire length 200mm (equivalent to AWG#24)
Rated at 1A, 125V, AC, DC
Suitable through-hole diameter: 0.9 to 1.0 mm
Suitable board thickness: 1.6mm
Suitable pin diameter: 0.635sq
Quantity: 10
