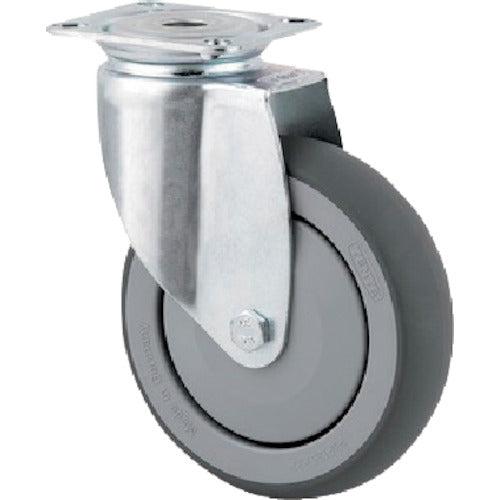

Tente Caster Plate-type Caster "AGILA" (Elastomer Wheel) φ100 Swivel 2470PJP100P50 1 pc

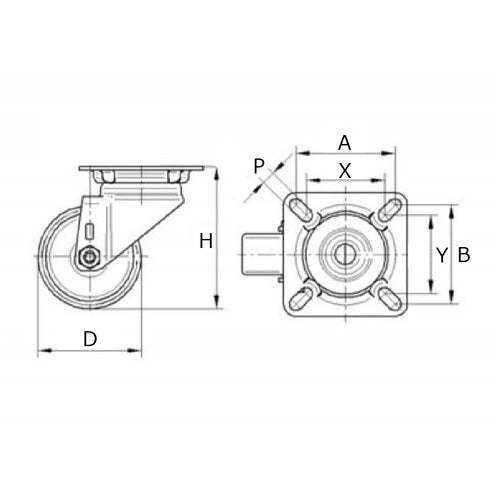

Catalog number: 2470PJP100P50 Features: ●Standard caster with reliability and durability made in Germany. ●Tires are non-marking. ●Precision ball bearings are used in the wheel axle, allowing for smooth movement. Specifications: ●Wheel diameter D (mm): 100 ●Type: Swivel ●Allowable load (daN): 98 ●Allowable load (kgf): 100 ●Wheel width (mm): 32 ●Mounting height H (mm): 135 ●Mounting seat A (mm): 77 ●Mounting seat B (mm): 67 ●Mounting pitch X (mm): 61.5/56 ●Mounting pitch Y (mm): 51.5/46.5 ●Mounting hole diameter P (mm): 8.5 ●Plate type ●Swivel type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Bright zinc plating ●Wheels: Elastomer
