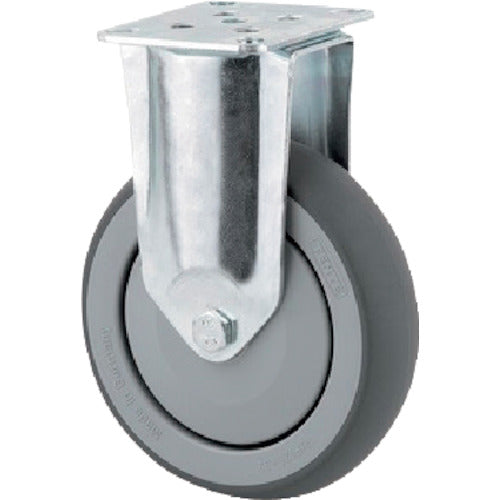

Tente Caster Plate-type Caster "AGILA" (Elastomer Wheel) φ75 Fixed Type 2478PJP075P60 1 pc

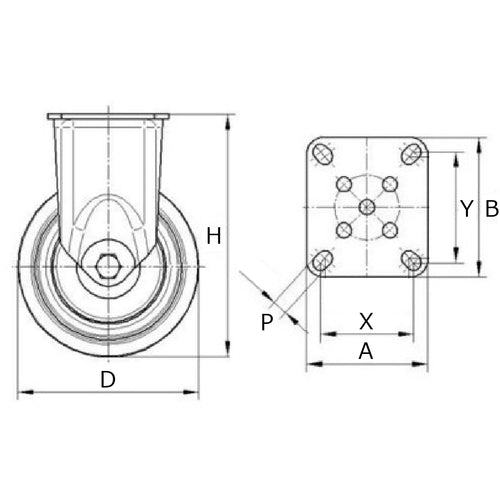

Catalog number: 2478PJP075P60 Features: ●Standard caster with reliability and durability made in Germany. ●Tires are non-marking. ●Precision ball bearings are used in the wheel axle, allowing for smooth movement. Specifications: ●Wheel diameter D (mm): 75 ●Type: Fixed type ●Allowable load (daN): 73.5 ●Allowable load (kgf): 75 ●Wheel width (mm): 25 ●Mounting height H (mm): 100 ●Mounting seat A (mm): 60 ●Mounting seat B (mm): 60 ●Mounting pitch X (mm): 48/38 ●Mounting pitch Y (mm): 48/38 ●Mounting hole diameter P (mm): 6.3 ●Plate type ●Fixed type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Bright zinc plating ●Wheels: Elastomer
