Tente Caster Plate-type Caster "ALPHA" (Urethane Wheel) φ100 Fixed Type 3478ITP100P62 CONVEX 1 pc

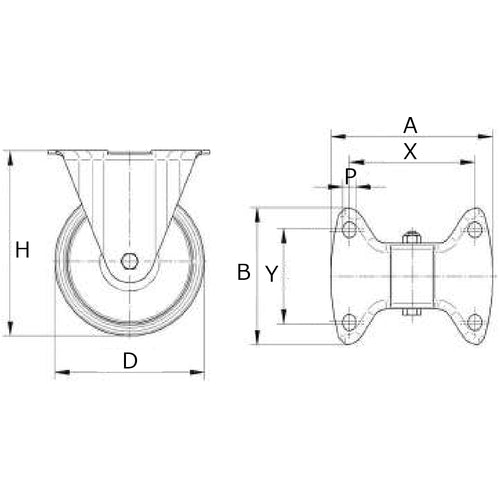

Catalog number: 3478ITP100P62 CONVEX Features: ●Double ball race bearings are used in the turning section, which allows for smooth start-up and excellent durability. ●The tires are non-marking. ●The wheels are rounded, which reduces the contact area with the floor and reduces resistance, allowing for light operation. Specifications: ●Wheel diameter D (mm): 100 ●Type: Fixed type ●Allowable load (daN): 245 ●Allowable load (kgf): 250 ●Wheel width (mm): 40 ●Mounting height H (mm): 128 ●Mounting seat A (mm): 105 ●Mounting seat B (mm): 85 ●Mounting pitch X (mm): 80/77 ●Mounting pitch Y (mm): 60 ●Mounting hole diameter P (mm): 9 ●Plate type ●Fixed type Materials/Finish: ●Hardware: Steel ●Hardware surface treatment: Glossy zinc plating ●Wheels: Urethane
