Tente Caster Plate-type Caster "ALPHA" (Tire-mark-less type) φ125 Swivel 3470UFR125P62 1 pc

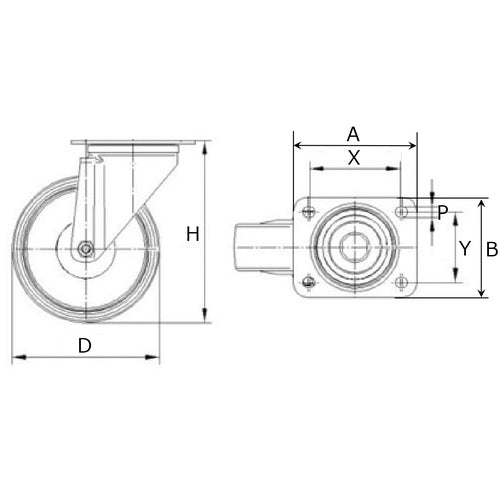

Catalogue number: 3470UFR125P62 Features: ●Double ball race bearings are used in the swivel section, which allows for smooth start-up and excellent durability. ●The wheels have low operating noise and are non-marking, reducing tire marks. Specifications: ●Wheel diameter D (mm): 125 ●Type: Swivel ●Allowable load (daN): 245 ●Allowable load (kgf): 250 ●Wheel width (mm): 40 ●Mounting height H (mm): 155 ●Mounting seat A (mm): 105 ●Mounting seat B (mm): 85 ●Mounting pitch X (mm): 80/77 ●Mounting pitch Y (mm): 60 ●Mounting hole diameter P (mm): 9 ●Plate type ●Swivel type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: High-gloss zinc plating ●Wheels: Rubber
