マザーツール

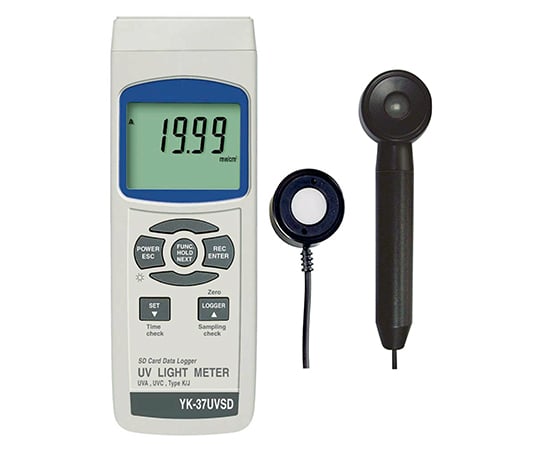

Data logger handy type UV intensity meter YK-37UVSD 1 piece
Data logger handy type UV intensity meter YK-37UVSD 1 piece
Regular price
¥85,800
Regular price
Sale price
¥85,800
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Data logger UV intensity meter (UVA/UVC) with SD slot
Simply import the measured data into your computer and edit it in Excel.
Backlight for measurement in dark places
The UV sensor can be extended using a 5m extension cable (sold separately). Sensor: High-quality photodiode, infrared color correction filter, thermal type (K/J type) sold separately.
Measurement wavelength: UVA region: 290-390nm, UVC region: 248-260nm
Measurement range: 2mW/cm2, 20mW/cm2
Resolution: 0.001mW/cm2・0.01mW/cm2
Accuracy: ±(0.4%+2dgt)
Data output: SD card/RS232C/USB output
Operating environment temperature/humidity: 0 to 50℃, 80%RH or less
Power supply: 6 AA batteries (1.5V) *AC adapter sold separately
Battery life: Approximately 120 hours
Size: Main unit: 68 (W) x 177 (H) x 45 (D) mm, approx. 490g, Sensor: UVA 45 (W) x 170 (H) x 32 (D) mm, UVC φ31 mm x 27 mm
Cord length: Approx. 110mm
Accessories: Hard case, SD card (8GB), battery (trial battery), instruction manual
