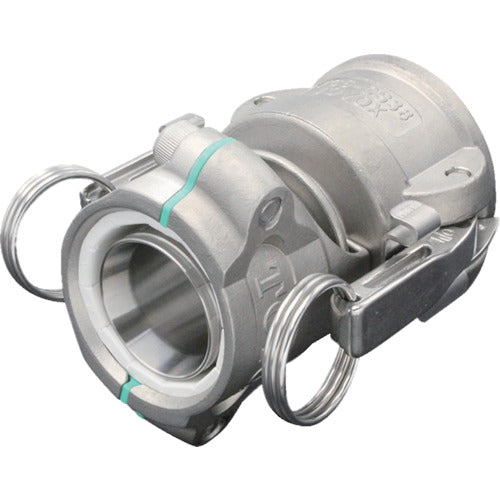

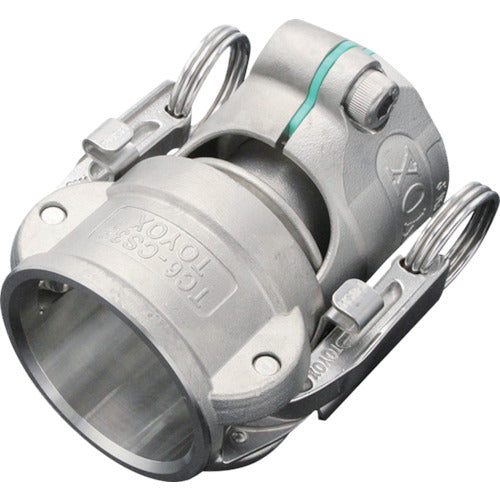

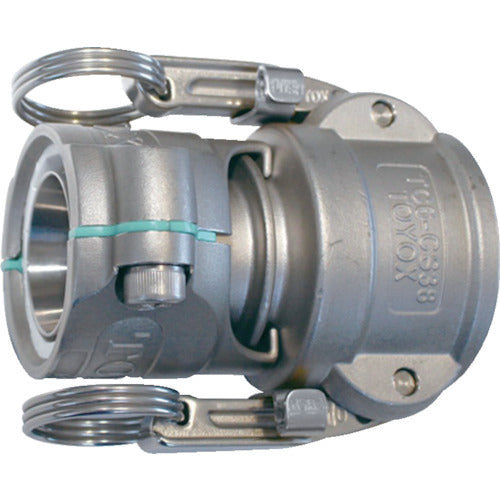

Toyox Hose Fitting (Stainless Steel) Toyo Connector TC6-CS Type Compatible Hose 50mm Fitting Standard R2 TC6-CS50 TC6-CS50 1 pc

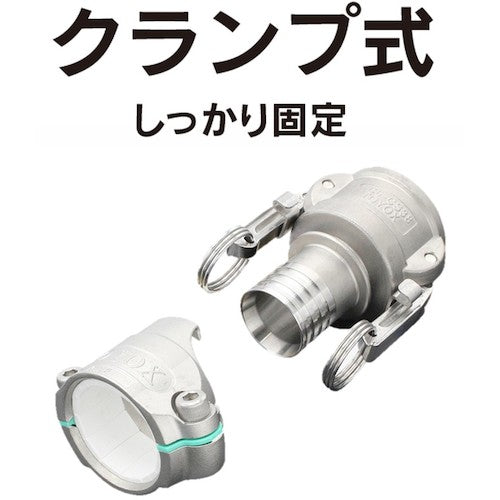

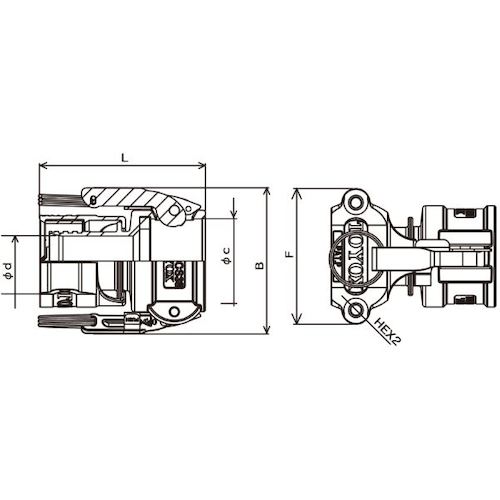

Catalog number: TC6-CS50 Features: ● Special fittings for Toyox hoses. ● [Leak and pull-out prevention hose fittings] These hose fittings prevent production problems such as fluid leakage and hose pull-out, enabling stable production. ● [Standardization of installation work] By simply tightening the dedicated clamp without any gaps, uniform installation work is possible. Also, there is no need for additional tightening work like with hose bands. ● [Safety] The lever (arm) can be easily locked, preventing the lever (arm) from loosening or coming off unexpectedly. ● [Risk reduction] Prevents piping problems such as leaks and pull-outs caused by vibrations and earthquakes. ● [Reusable hose fittings] When reusing, simply replace the parts inside the fitting. ● Compatible with Camlocks. Uses: ● For hose piping of food, beverages, cosmetics, chemicals, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, oil, beverages, drinking water, food ● Suitable hose inner diameter (mm): 50 ● Suitable hose outer diameter (mm): 62 ● Fitting standard: 2 ● Suitable hose inner diameter x outer diameter (mm): 50 x 62 ● Dimension L (mm): 122.5 ● Dimension Φd (mm): 43 ● Dimension F (mm): 106 ● Dimension A (mm): 193 ● Dimension B (mm): 103 ● Dimension φC (mm): 63.3 ● Dimension HEX (mm): 8 ● Fitting for pressure-resistant hose ● Operating pressure and temperature range: Conforms to compatible hose standards Material/Finish: ● Nipple, cam arm: SCS14 (equivalent to SUS316) ● Fixing parts, ring, pin, spring: SUS304 ● Clamp: SUS14 (equivalent to SUS316) ● Gasket: Silicone rubber Caution: ●This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, the performance may not be fully demonstrated or maintained, so no guarantee is made. ●Select the body and gasket materials appropriate for the fluid to be used. If the chemical is a gas, do not use chemicals that are dangerous if they penetrate (active gases). ●Do not apply external force (shock, etc.) to the body, cam arm, or parts. This may cause damage. Also, be careful not to apply load (stress) to the connection part. This may cause fluid leakage. ●Gaskets made of fluororesin lack elasticity and may leak depending on the conditions of use, so please contact us in advance. (Toyox Customer Service Center toll free 0120-52-3132) ●When connecting products, we recommend using couplers and adapters made of the same material. If connecting couplers and adapters made of different materials, corrosion (electrolytic corrosion) may occur.
