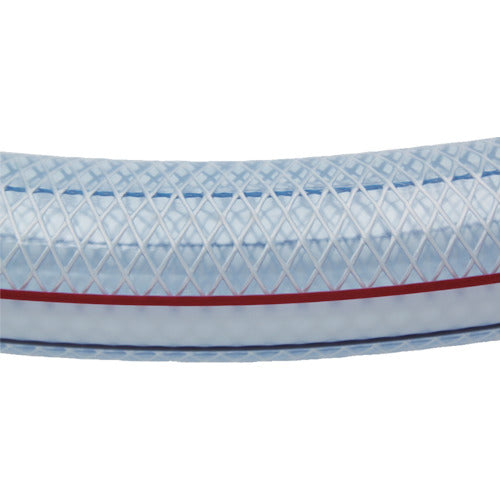

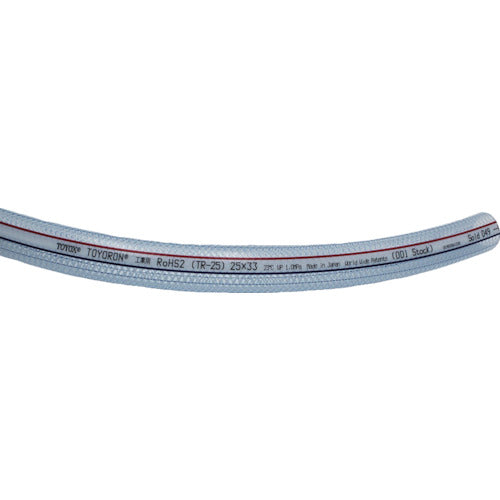

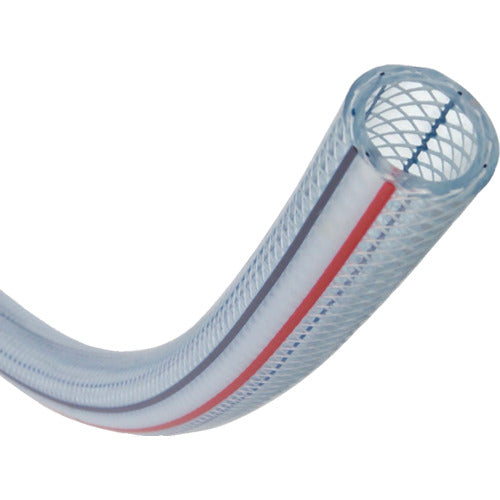

Toyox Pressure-resistant hose for water, oil, chemicals, and air Toyoron hose Inner diameter 9 mm x outer diameter 15 mm Length 50 m TR-9-50 TR-9-50 1 roll

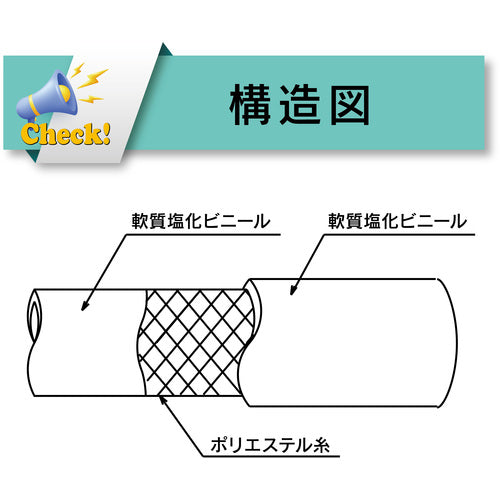

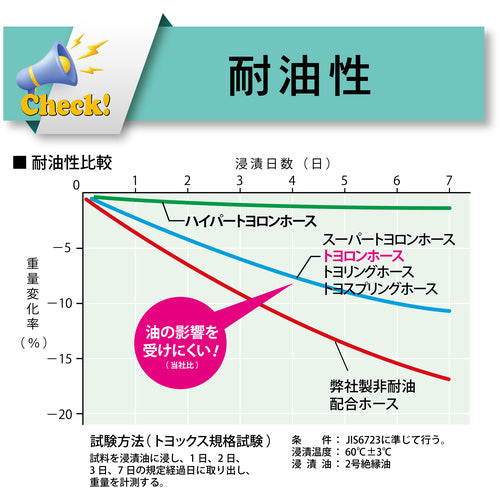

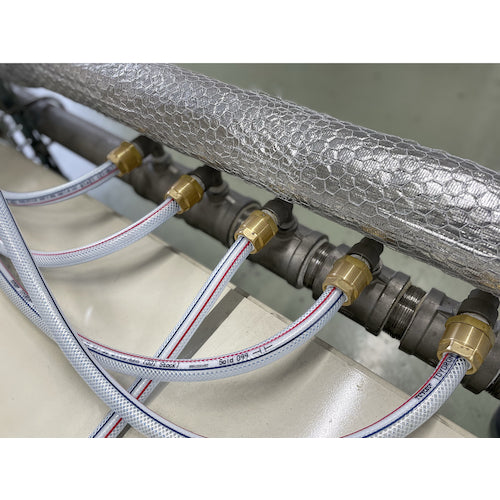

Catalog number: TR-9-50 Features: ● Good transparency, so you can check the fluid and feel safe. ● The inner surface has excellent oil resistance. ● Good flexibility, making piping easy. ● The hose is easy to cut and the fittings can be inserted easily. ● [Wide range of sizes] Pressure-resistant blade hose with a wide range of sizes (inner diameter 4 to 75 mm). ● [Legal compliance] Compliant with RoHS 2 revised regulations for safety and security. Applications: ● For general piping use with various fluids such as water, oil, chemicals, and air. Specifications: ● Length (m): 50 ● Inner diameter (mm): 9 ● Outer diameter (mm): 15 ● Operating pressure (MPa): 1.5 (23 ° C), 1.0 (60 ° C) ● Allowable bending radius (mm or more): 45 ● Operating temperature range: -5 to 60 ° C ● Color: Blue transparent ● Color: Blue transparent / Image line + blue warp thread included Material / Finish: ● Main material: Soft polyvinyl chloride (PVC) ● Reinforcement material: Polyester thread Caution: ● Do not use for drinking, food, or medical purposes. ●Use hose nipples that are appropriate for the hose size. Do not use nipples with scratches or rust on the surface. ●The lifespan of a hose is greatly affected by the physical properties of the fluid, temperature, flow rate, and frequency of pressurization and depressurization. ●If any abnormalities or signs of abnormalities are found during start-up or regular inspections, immediately discontinue use and repair or replace with a new hose. ●We recommend using our specialized hose fittings and hose clamps. Tighten hose clamps as appropriate.
