TOEI HI Fitting Insert Faucet Elbow 13 HIMWL13 1 pc

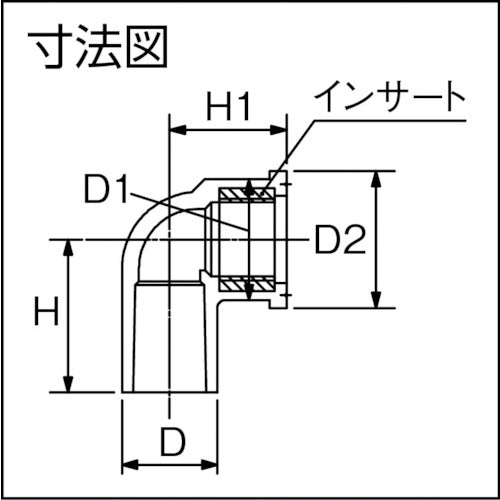

Catalog number: HIMWL13 Features: ●Can be easily cut or scraped with ordinary tools. ●Pipes can be easily joined with a special adhesive, eliminating the risk of water leakage. Applications: ●Coupling exclusively for HI pipes (rigid PVC pipes). Specifications: ● PVC pipe nominal diameter: 13 ● Dimensions (mm) D: 24 ● Dimensions (mm) H: 38.0 ● Maximum operating pressure (MPa): 0.98 ● Operating temperature range (℃): 0 to 40 ● Dimensions (mm) L1: 38 ● Thread: Rp1/2 ● Dimensions (mm) L2: 29 ● Dimensions (mm) D2: 34 ● Dimensions (mm) H1: 29 ● Dimensions (mm) D1: 30 ● Operating temperature range: 0 to 40℃ ● Maximum operating pressure: 0.98MPa ● JIS K6743 standard Material/Finish: ● Impact-resistant rigid polyvinyl chloride (HI-PVC) Caution: ● When connecting to a water tap, threaded steel pipe, etc., observe the installation methods and standard tightening torques described in the technical documents and catalogue, and do not tighten excessively.
