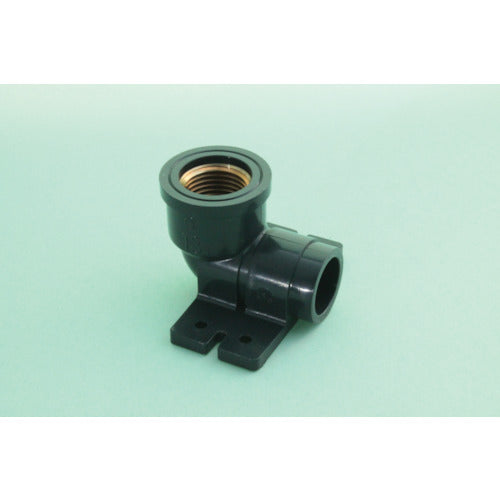

TOEI HI Fitting Insert Faucet Elbow with Seat 13 HIMWL-ZN13 1 pc

Catalog number: HIMWL-ZN13 Features: ●Since it has a seat, no pipe band is required. ●The pipes can be easily connected with a special adhesive, so there is no need to worry about water leakage. Applications: ●Fittings exclusively for HI pipes (rigid PVC pipes). Specifications: ●Nominal diameter of PVC pipe: 13 ●Dimensions (mm) D: 24 ●Dimensions (mm) H: 38 ●Dimensions (mm) L: 65 ●Operating temperature range: 0 to 40°C ●Maximum operating pressure: 0.98MPa Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC) Caution: ●When connecting to a water faucet or threaded steel pipe, etc., follow the construction method and standard tightening torque described in the technical documentation and catalog, and do not tighten excessively.
