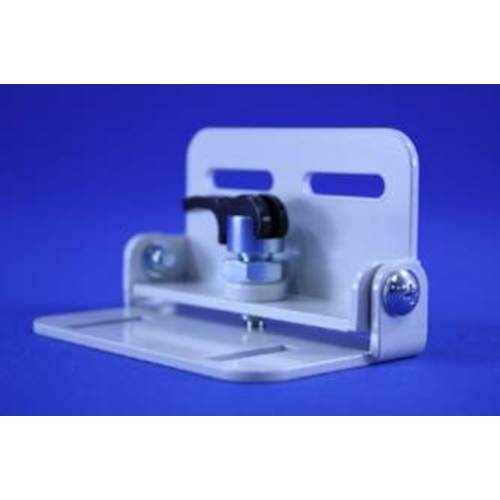

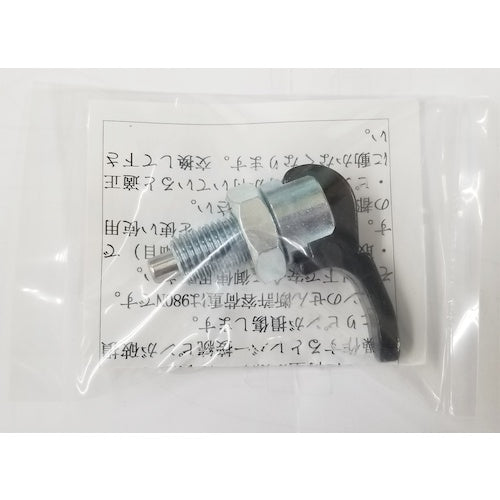

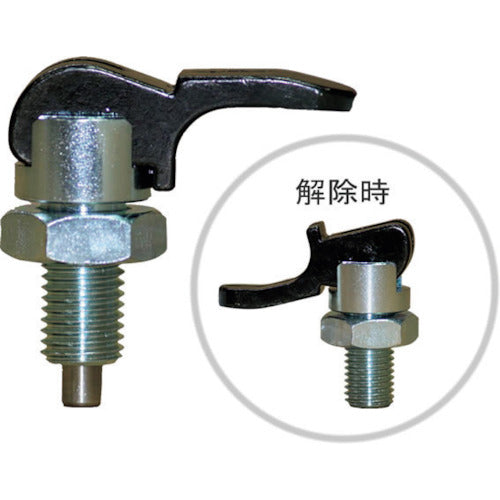

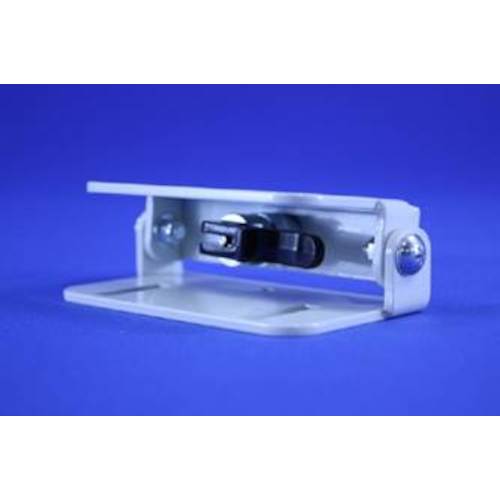

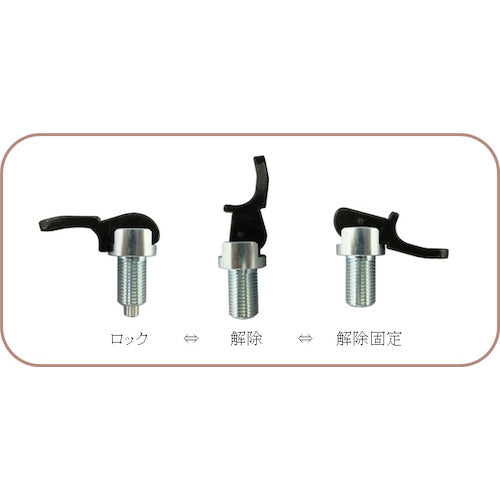

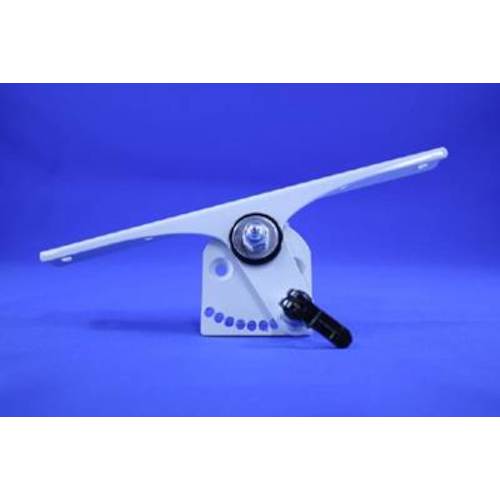

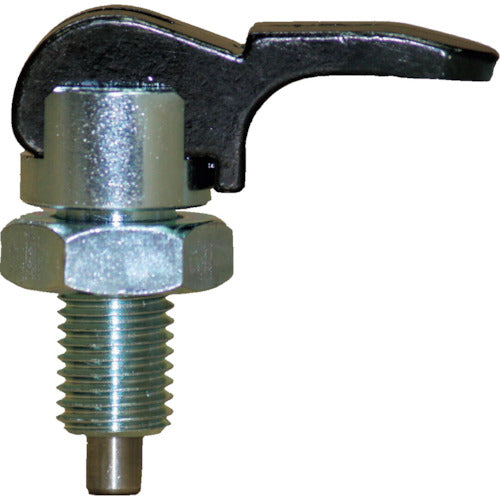

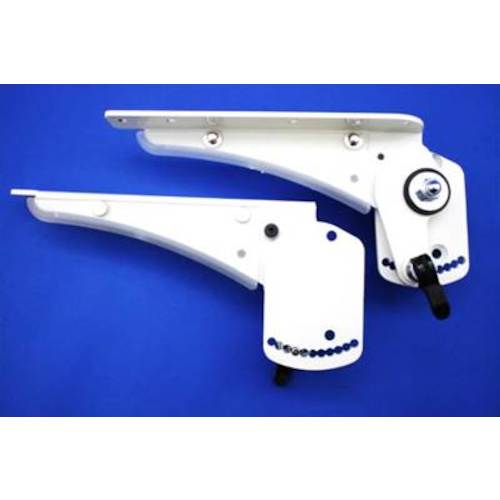

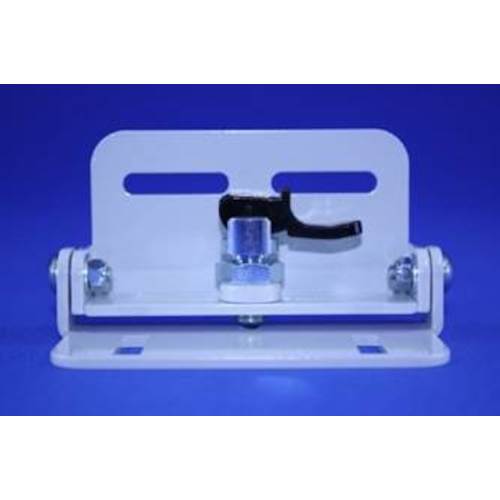

Catalog number: TSP-16 Features: ●Safe design that will not come loose even if it is subjected to unexpected impact or contact when locked. ●A compact plunger with a simple structure and high strength. Applications: ●Fixed jigs in factories, etc. ●Angle adjustment jig ●Furniture ●Welfare equipment Specifications: ●Load (N): 2500 ●Screw dimensions: M16 x 1.5 ●Total length (mm): 53 ●Pin diameter (mm): 8 ●Outer diameter (mm): 59.4 ●Stroke (mm): 8 ●Mounting height (mm): 24 ●Lever width (mm): 16 ●Screw length (mm): 29 ●Lever length (mm): 59.4 ●Heat resistance temperature (℃): 150 Material/Finish: ●Lever: Zinc die-cast (black chromate) ●Body: SUM22L (Unicro) ●Pin: Stainless steel (SUS303) ●Included nut: Steel (Unicro) Set contents/Accessories: ●3 types of hex nuts ●Instruction manual Caution: ●Never use in excess of the shear load.
