Toshin Plate-type double-wheel caster, diameter 50, swivel U50-P, 1 piece

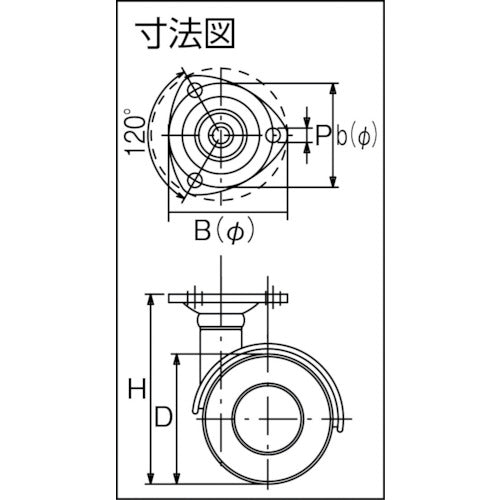

Catalogue number: U50-P Features: ● A long-running standard caster with a luxurious feel thanks to the die-cast and chrome-plated body. Applications: ● Medical equipment, furniture, store fixtures, etc. Specifications: ● Wheel diameter D (mm): 50 ● Type: Swivel ● Allowable load (daN): 80 ● Allowable load (kgf): 81 ● Wheel width (mm): 48 ● Mounting height H (mm): 73 ● Mounting seat A (mm): 54 ● Mounting seat B (mm): 54 ● Mounting pitch X (mm): 40 ● Mounting pitch b (mm): 40 ● Mounting hole diameter P (mm): 5.5 ● Plate type ● Swivel ● General-purpose design caster Material/Finish: ● Metal fittings: Cold-rolled steel plate (SPCC) ● Metal fittings surface treatment: Trivalent chromium plating finish ● Body: Die-cast ● Wheels: Nylon
