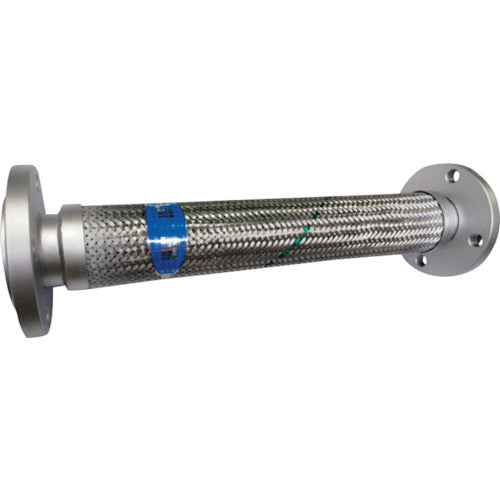

TOFLET TF Fire Service Law Flexible High Pressure Single Layer Bellows SUS316L JIS10K (SS400) 50AX700L TF-14000-50-700 1 Piece

Catalog number: TF-14000-50-700 Features: ●This product is rated for its performance in accordance with Fire Safety Hazard No. 20. ●Fire safety rating plate included. ●Products are in stock and can be shipped on the same day. Applications: ●For absorbing vibrations in ground subsidence and piping. Specifications: ●Nominal diameter A: 50 ●Nominal diameter B: 2 ●Total length (mm): 700 ●Flange size: JIS10K ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): 100℃ ●Connection method: JIS10K (SS) ●Compatible fluids: oil, solvents, etc. ●Fire Service Act ●Operating temperature range: 0 to 100℃ ●Fire safety rating Material/Finish: ●Flange: Steel (SS400, JIS10K) ●Wetted parts: Stainless steel ●Tube: Stainless steel (SUS316L)
