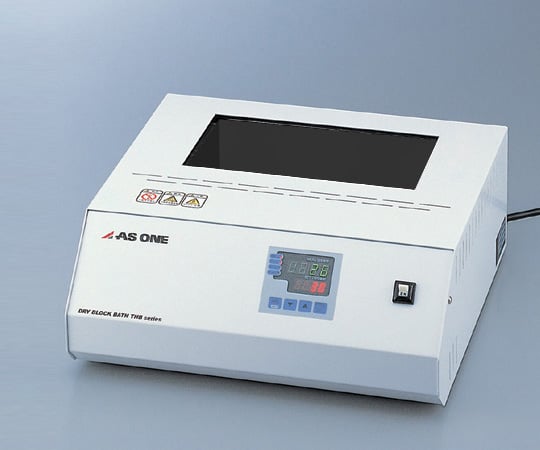

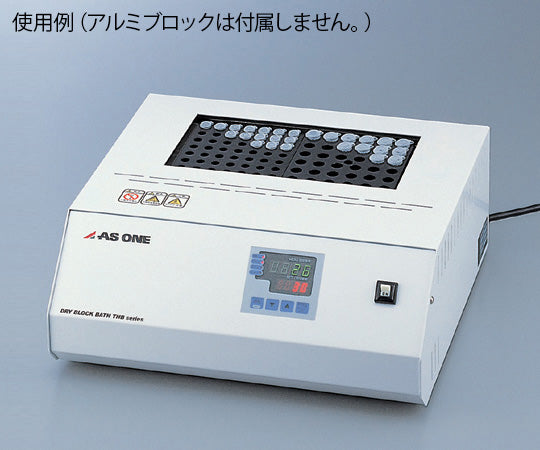

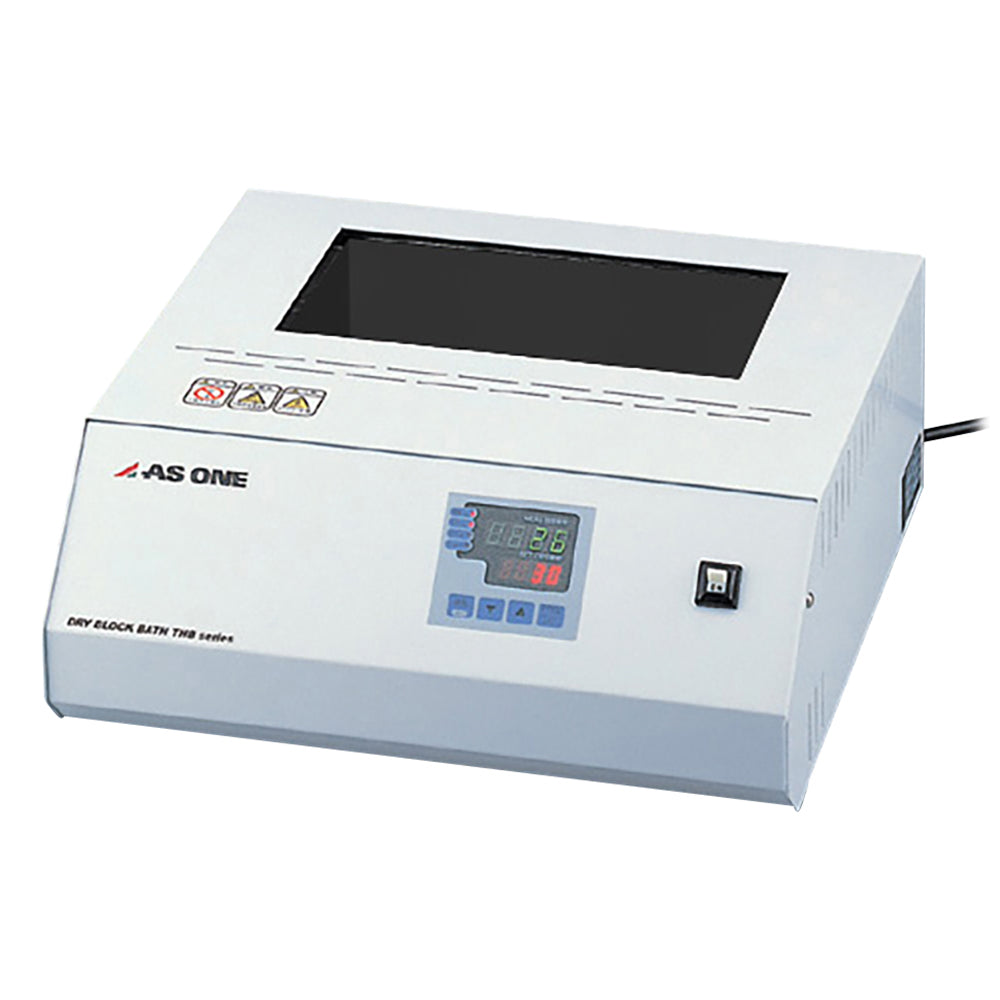

Dry block bus THB-2 1 unit

Program function plus temperature rise gradient can be changed It has a 16-step, 4-pattern program function, and the temperature rise gradient can also be changed. The surface heater heats the block evenly and provides excellent temperature control precision. It has achieved a shorter time to reach maximum temperature while suppressing overshoot at low temperatures. Specifications: 2-block rack Size (mm): 350 x 330 x 139 Operating temperature range: Room temperature +5 to 200°C Temperature control accuracy: ±0.5℃ (at 200℃, Φ16.5 aluminum block) Temperature distribution width: 2.0℃ (at 200℃) Time to reach maximum temperature: approximately 40 minutes Temperature control method: PID control/SSR output Program function: 16 steps, 4 patterns Time setting range: 0 minutes to 99 hours 59 minutes Resolution (temperature/time): 1℃/1 minute Temperature sensor: K thermocouple Heater capacity: Surface heater 600W Safety features: Overcurrent fuse, temperature controller alarm (heater OFF when temperature rises too high/sensor breaks) Power supply: AC100V 50/60Hz 6.1A Power cord length: Approx. 2.6m (3P plug) Weight: Approx. 7.2kg Accessories: Handle for removing aluminum block *Aluminum block is not included with the main unit. *We can custom-make the block's hole diameter, number of holes, depth, etc. Please contact us for more information.
