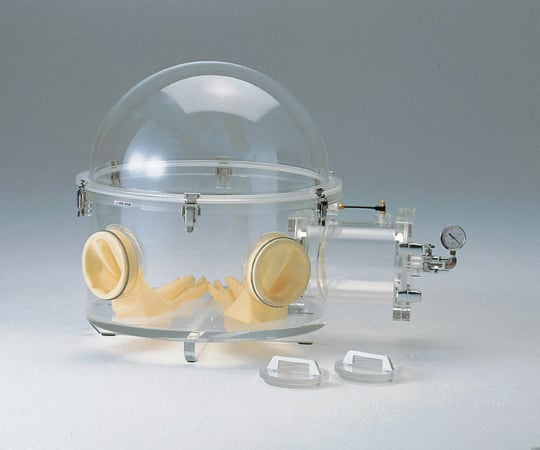

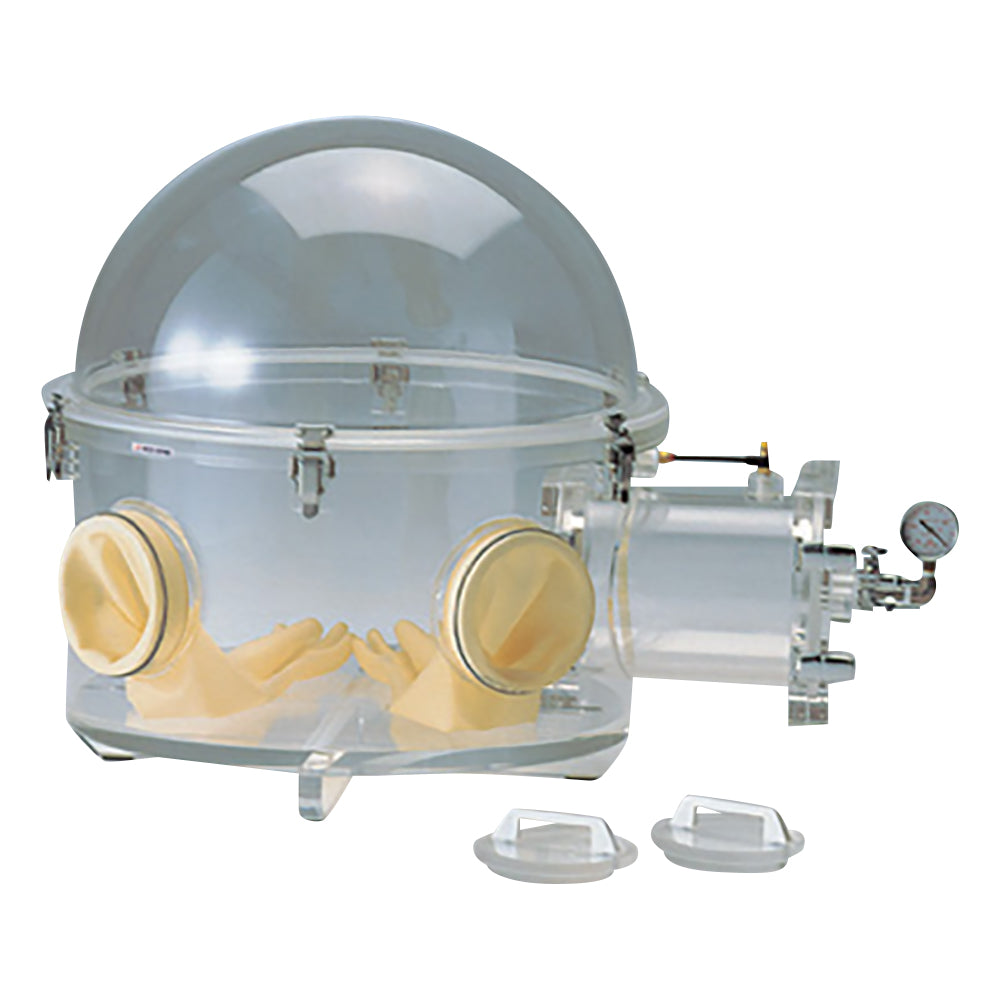

Dome-shaped acrylic vacuum glove box DV type 1 unit

The dome top of the main unit is a removable lid. Samples can be inserted and removed during operation without changing the internal atmosphere by passing them through the pass box on the right side. The dome-shaped main body is resistant to reduced pressure and can be reduced to 1 Torr. Transparent PMM (acrylic) A and dome-shaped structure allow for observation of the inside from all directions. Size (mm): 754 x 570 x 625 Usage: Vacuum Material: Main body: Reinforced transparent PMMA (acrylic), Valve, vacuum gauge mounting section, pass box door: PC (polycarbonate) Pressure reduction tolerance: Approx. 133 Pa (1 Torr) Pass box size: φ200×250mm Pass box decompression tolerance: Approx. 133 Pa (1 Torr) Weight: 25kg Accessories: 1 pressure gauge, 2 vacuum valves (outer diameter φ8mm), 1 vacuum valve (outer diameter φ14mm), 1 pair of large gloves for glove box Recommended vacuum pump: Oil rotary vacuum pump GLD-136C (1-898-15) / Oil rotary vacuum pump GCD-136X (1-671-19) *We use wooden packaging (frames, pallets, etc.).
