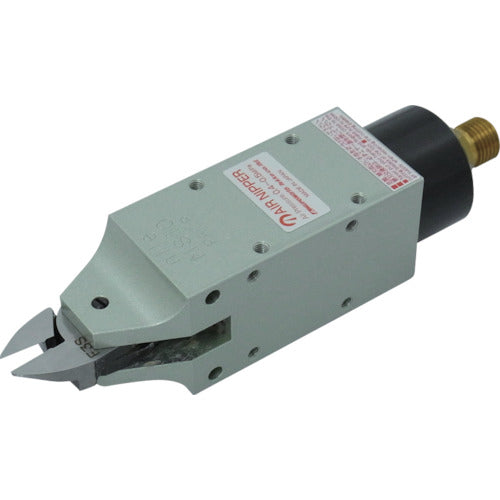

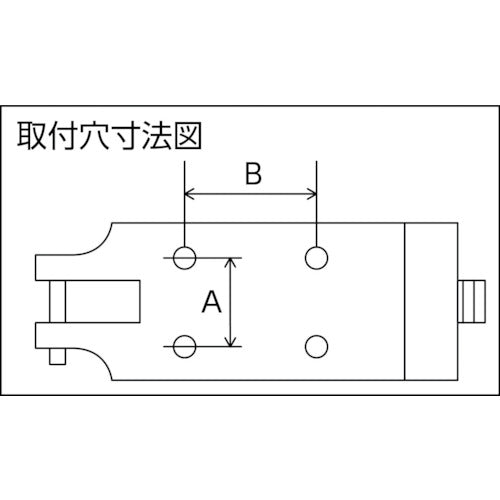

Catalog number: MS-3 Features: ● The body is square and has many mounting holes, making it easy to set up on machines, etc. Applications: ● Attach to automatic machines for cutting, crimping, etc. Specifications: ● Cutting capacity (mm) Iron wire: 0.4 ● Cutting capacity (mm) Copper wire: 0.8 ● Cutting capacity (mm) ABS resin: 1 ● Pressure (N): 773 ● Air consumption (cm3/time): 773 ● Air pressure (MPa) combined: 0.4-0.5 ● Width (mm): 20 ● Depth (mm): 110 ● Height (mm): 20 ● Replacement blade for iron and copper: S20 ● Replacement blade for resin: F10 ● Hose mounting port: G1/4 ● Mounting hole (A x B): 16 x 40 ● Air pressure (MPa): 0.4-0.5 ● Please use a compressor of 1/2HP or more. Note: ● Blades are sold separately.
