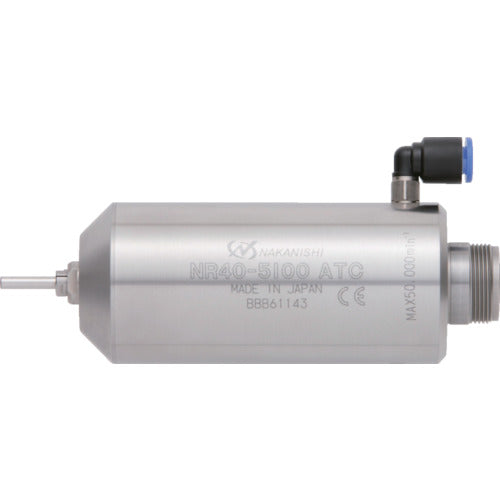

Nakanishi Automatic Tool Change Spindle (1582) NR40-5100 ATC 1 unit

Catalog number: NR40-5100 ATC Features: ●The E3000 series has a wide product line and is a full lineup. ●High-precision machining is possible with spindle runout accuracy of within 1 μm, and tool life is extended. ●The spindle and motor can be freely combined, allowing you to select the model according to your machining application. Specifications: ●Maximum rotation speed (min-1): 50000 ●Outer diameter (mm): φ40 ●Total length (mm): 96.1 ●Applicable collet: CHB group (φ2.0, φ3.0, φ3.175, φ4.0 mm) Set contents/accessories: ●Collet φ3.175 mm (CHB-3.175), one each of wrenches (6.1 x 8) and (9 x 11), one wrench (K-236), air hose with filter (K-251) φ6 mm x 2 m
