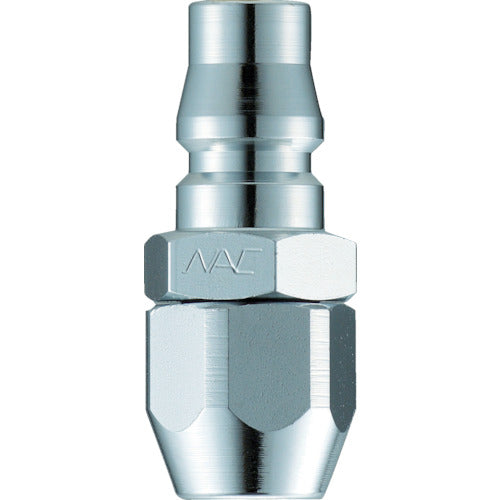

NAC Quick Coupling AL20 Type Steel Urethane Hose Mounting Plug 6.0 x 9.0 CAL22PA 1 Piece

Catalog number: CAL22PA Features: ●Can be installed without fixing the tube with a band. ●Compatible with all AL type 20 sockets and AT type sockets. Applications: ●For chemical tubes such as polyurethane tubes. Specifications: ●Fluid used: Air and others ●Maximum operating pressure (MPa): 1.5 ●Maximum impact pressure (MPa): 2.0 ●Applicable hose (mm) inner diameter x outer diameter: 6.0 x 9.0 ●Operating temperature range: -20 to 80°C ●Plug for single valve Material/Finish: ●Body: Steel Caution: ●Fluid should flow from the socket side to the plug side.
