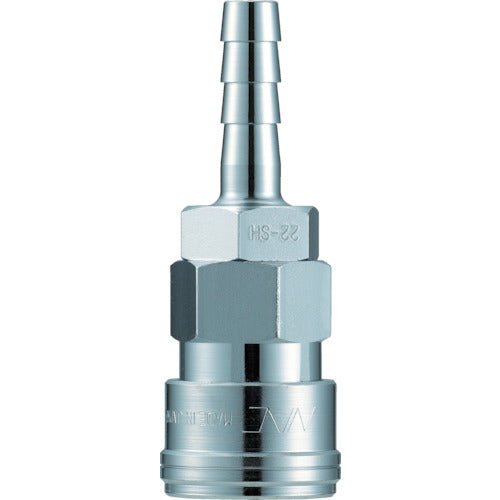

NAC Quick Coupling AL40 Type Steel Hose Mounting CAL46SH 1 Piece

Catalog number: CAL46SH Features: ● A wide variety of materials, sizes, and mounting shapes are available for versatility, and the main parts are hardened for excellent durability and wear resistance. Applications: ● For air piping in factories and pneumatic tools. Specifications: ● Mating hose size (inches): 3/4 ● Fluid used: air, oil, etc. ● Maximum operating pressure (MPa): 1.5 ● Maximum impact pressure (MPa): 2.0 ● Operating temperature range: -20 to 80°C ● One-way opening and closing type ● One-way valve Material/Finish: ● Body: Steel ● Sealing rubber: Nitrile rubber (NBR) Caution: ● Make sure the fluid flows from the socket side to the plug side.
