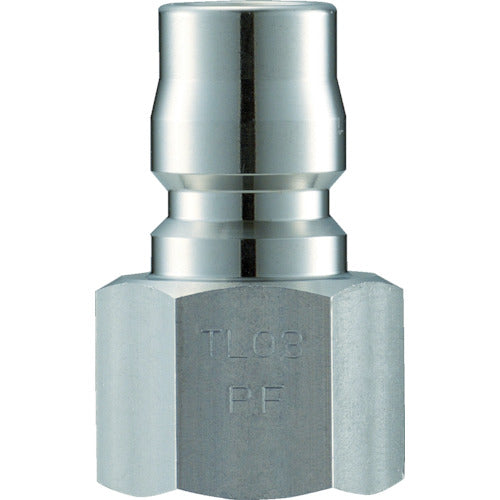

NAC Quick Coupling TL Type Stainless Steel Male Thread Mounting Plug R1 CTL08PF3 1 pc

Catalog number: CTL08PF3 Features: ● A through-type without a valve mechanism, it is suitable for fluids with high viscosity and has little pressure loss. Specifications: ● Fluids used: air, water, hydraulic oil, etc. ● Maximum operating pressure (MPa): 4.5 ● Compatible connection size (inch): R1 ● Maximum impact pressure (MPa): 6.5 ● Operating temperature range: -20 to 180°C ● Valveless Material/Finish: ● Body: Stainless steel (SUS304) Caution: ● Please note that as the size increases, the pressure resistance decreases.
