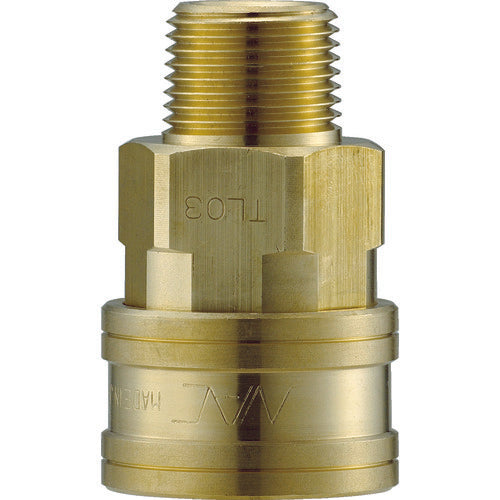

NAC Quick Coupling TL Type Brass Socket for Female Thread Mounting Rc3/8 CTL03SM2 1 pc

Catalog number: CTL03SM2 Features: ● A through-type without a valve mechanism, with little pressure loss and suitable for highly viscous fluids. Specifications: ● Fluids used: air, water, hydraulic oil, etc. ● Maximum operating pressure (MPa): 5.0 ● Compatible connection size (inch): Rc3/8 ● Maximum impact pressure (MPa): 7.5 ● Operating temperature range: -20 to 180°C ● Two-way open type ● Valveless Material/Finish: ● Body: Brass ● Sealing rubber: Fluorine rubber (FKM) Caution: ● Please note that as the size increases, the pressure resistance decreases.
