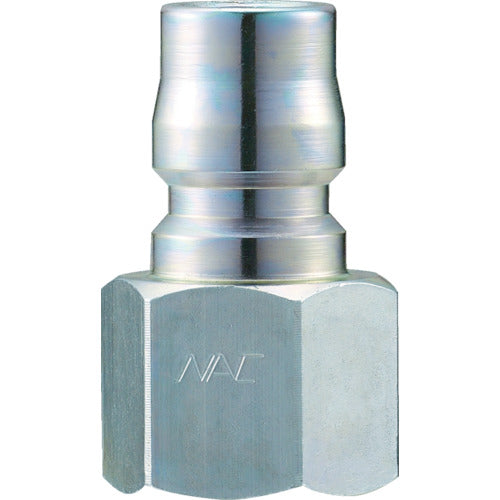

NAC Quick Coupling TL Type Steel Male Thread Mounting CTL04PF 1 pc

Catalog number: CTL04PF Features: ● A through-type without a valve mechanism, with little pressure loss and suitable for highly viscous fluids. Specifications: ● Fluids used: air, hydraulic oil, etc. ● Maximum operating pressure (MPa): 7.5 ● Compatible connection size (inch): R1/2 ● Maximum impact pressure (MPa): 10.0 ● Operating temperature range: -20 to 80°C ● Valveless Material/Finish: ● Body: Steel Caution: ● Please note that as the size increases, the pressure resistance decreases.
