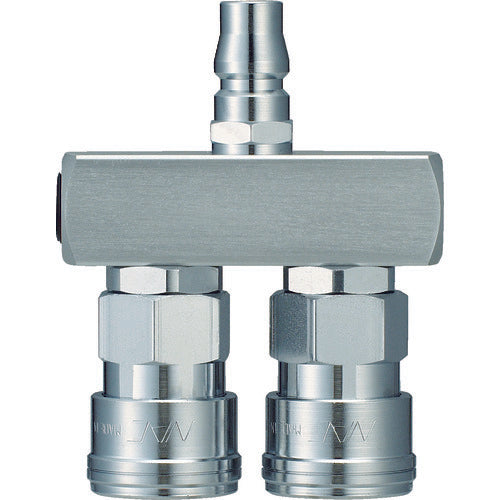

NAC Branch and Collector Pipe CAL2L 1 pc

Catalog number: CAL2L Features: ● A coupling for popular branched collecting piping (multiple branched air can be taken out from one pipe). Applications: ● For air piping of branched collecting piping and pneumatic tools. Specifications: ● Maximum operating pressure (MPa): 2.0 ● Inlet: CAL20 type plug ● Outlet: CAL20 type socket x 2 ● Operating temperature range (℃): -20 to +80 ● Fluid used: Air ● Operating temperature range: -20 to 80℃ ● Maximum operating pressure: 1.5MPa ● Built-in valve Material/Finish: ● Body: Aluminum alloy ● Coupling: Steel (chrome plated) ● Sealing rubber: Nitrile rubber (NBR) Note: ● Please specify as the sealing material differs depending on the fluid.
