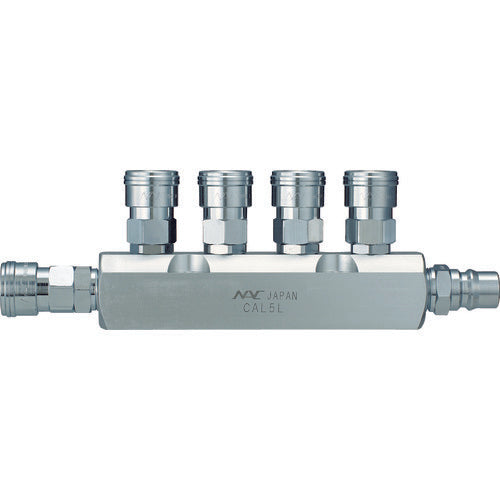

NAC Branch and Collector Pipe CAL5L 1 pc

Catalog number: CAL5L Features: ●Coupling for general-purpose branched collecting piping (multiple branched air can be taken out from one pipe). Applications: ●For air piping of branched collecting piping and pneumatic tools. Specifications: ●Maximum operating pressure (MPa): 2.0 ●Inlet: CAL44PM ●Outlet: CAL20 type socket x 4, CAL24SM socket x 1 ●Operating temperature range (℃): -20 to +80 ●Operating fluid: Air ●Operating temperature range: -20 to 80℃ ●Maximum operating pressure: 1.5MPa ●Built-in valve Material/Finish: ●Body: Aluminum alloy ●Coupling: Steel (chrome plated) ●Seal rubber: Nitrile rubber (NBR) Set contents/Accessories: ●CAL22PH 2 pieces Note: ●Please specify as the seal material differs depending on the fluid.
