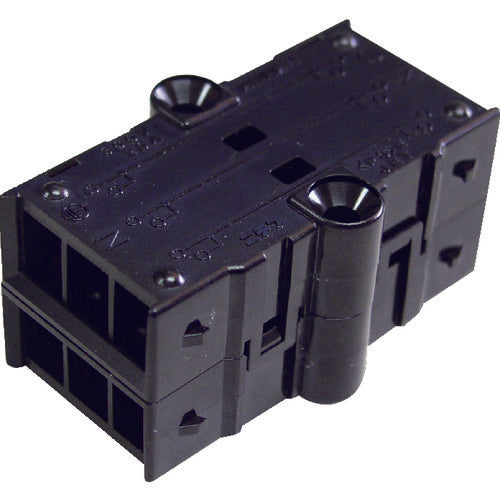

Nichifu Plug Joint Connector Terminal Block (Branch) (5 Pieces) Black Compatible Wire (Solid Wire) 1.6/2.0mm NPJ B02-3P 1 Box

Catalog number: NPJ B02-3P Features: ●Regarded as a joint box under the Electrical Appliance and Material Safety Act. ●Wiring can be easily changed by replacing the terminal block. ●The wire lock release lever allows you to remove the wire and reuse the connector. Applications: ●Connecting trunk and branch lines. Specifications: ● Number of poles: 3 ● Color: Black ● Compatible wire (copper wire) solid wire (mm): 1.6, 2.0 ● Number of plugged wires (pieces): 3 ● Rated current: 20A ● Wire clamping range Stranded wire (［［MM2］］): Not compatible with twisted wire ● Compatible wire (［［MM2］］) Stranded wire: Not compatible with twisted wire ● Compatible wire (mm) φ solid wire: 1.6, 2.0 ● Rated voltage (V): 100 ● Number of wires (pieces): 3 ● Wire clamping range Solid wire (mm): 1.6, 2.0 ● Insulation operating temperature range: -40 to 120°C Material/Finish: ● Molded product: Polycarbonate ● Contacts: Tin-plated copper alloy
