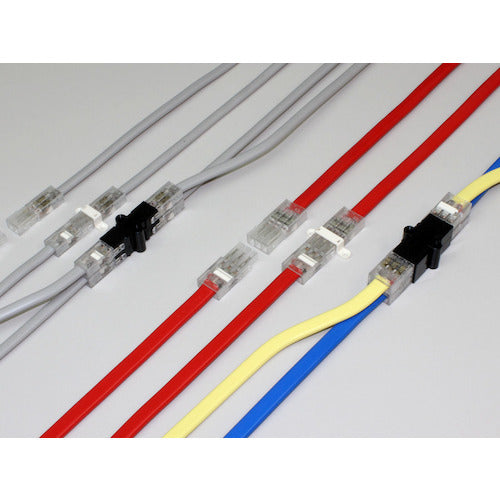

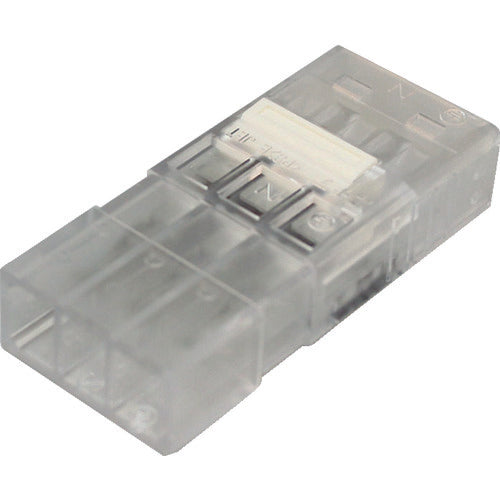

Nichifu Receptacle Connector M 20 pieces NPJM R01-3P 1 box

Catalog number: NPJM R01-3P Features: ● Regarded as a joint box under the Electrical Appliance and Material Safety Law. ● Mini type plug joint connector that can be connected in a space-saving manner. ● The wire can be removed by using the wire lock release lever to reuse the connector. Applications: ● Connection of trunk and branch lines. ● Connection of F cables. Specifications: ● Color: transparent ● Compatible wire (copper wire) single wire (mm): φ1.6-2.0 ● Type: Receptacle connector M ● Number of plugged wires (pieces): 3 ● Rated current: 20A ● Wire clamping range Stranded wire (［［MM2］］): Not compatible with twisted wire ● Compatible wire (［［MM2］］) Stranded wire: Not compatible with twisted wire ● Compatible wire (mm) φ single wire: φ1.6-2.0 ● Rated voltage (V): 300 ● Maximum operating temperature of insulator: 120℃ ● Applicable standards: Electrical Appliance and Material Safety Law E Material/Finish: Molded part: Polycarbonate; Contact: Tin-plated copper alloy
