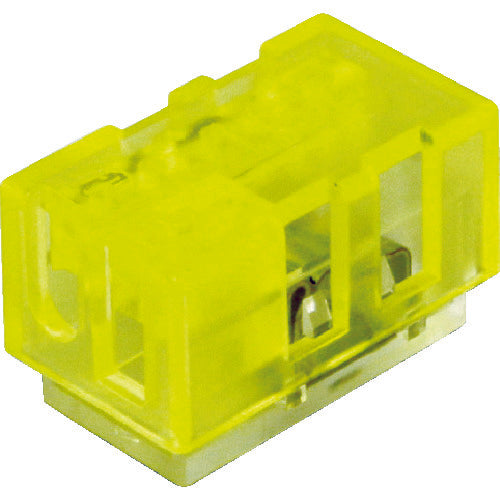

Nichifu Pressure Welding Terminal Connector NDE 0512 NDE-0512 1PK

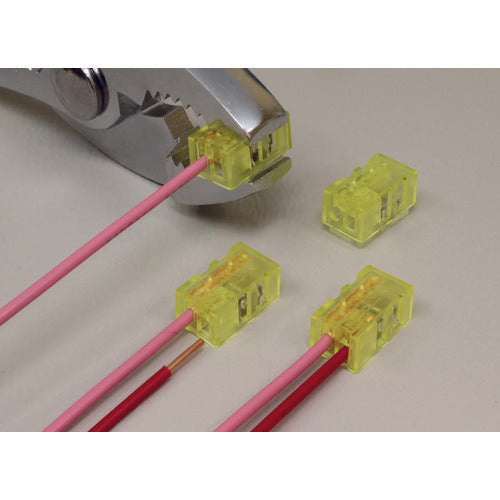

Catalog number: NDE-0512 Features: ● Terminal connection of stranded wire (insulation displacement) and solid wire (plug-in) is possible. ● Pressure connection of stranded wire can be easily performed with commercially available pliers. Applications: ● For connecting and relaying electric wires inside equipment. Specifications: ● Number of poles: 2 ● Color: Yellow transparent ● Number of plug-in wires (pieces): 2 ● Operating temperature range (℃): Maximum operating temperature: 120℃ ● Rated current: 5A ● Length (mm): 15.3 ● Rated current (A): 5 ● Compatible electric wire (mm) φ solid wire: 0.9, 1.2 ● Width (mm): 8.8 ● Height (mm): 7.1 ● Rated voltage (V): 100 ● Cover: Yellow transparent ● Housing: Transparent ● Electric wire Clamping range stranded wire mm [squared] ● Wire clamping range solid wire mm ● Applicable wire (copper wire) stranded wire [mm2]: 0.5 ● Applicable wire (AWG): 20 ● Operating temperature range: 0 to 40°C ● Stranded wire: 0.2 to 0.5 [mm2] (AWG24-20) / Wire coating outer diameter 1.9 mm ● Solid wire: φ0.9 mm, φ1.2 mm / Wire coating outer diameter (maximum) 1.8 mm Material / Finish: ● Polycarbonate (PC)
