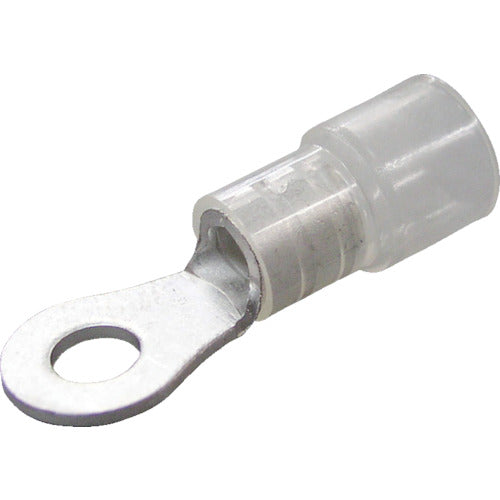

Nichifu Environmentally Friendly Insulated Round Terminal R Type (50 Pieces) Stranded Wire 2.63-6.64 Outer Dimensions 9mm Stud Diameter 3.2mm TMEX 5.5-3S-CLR 1 PK

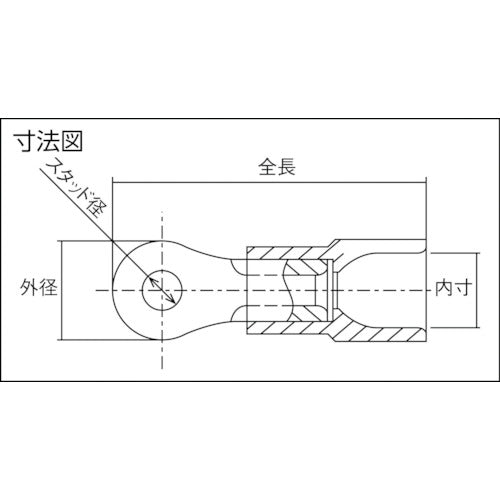

Catalog number: TMEX 5.5-3S-CLR Features: ●The insulating coating is pre-set in the terminal tube. ●Insulation shape: The TME type has a wire insertion guide (funnel-shaped) on the inside of the insulating coating. The core wire can be smoothly inserted into the tube along the guide with the coating stripped without twisting. ●Since it is made of non-halogen material, it does not generate toxic halogen gases or corrosive gases when burned. Applications: ●For connecting stranded wires of mild steel. Specifications: ●Wire clamping range Stranded wire (mm2): 2.63-6.64 ●Wire clamping range AWG: 12/10 ●Color: Transparent ●External diameter (mm): 9 ●Stud diameter (mm): 3.2 ●Total length (mm): 25.7 ●Inner dimension (mm): 6.8 ●JIS standard product: × ●Rated voltage (V): 600 ●Number of pieces per pack: 50 ●Not compatible with solid wire ●Operating temperature range: -40℃ to 120℃ Material/Finish: ●Terminal: Oxygen-free copper (electrolytic tin plated) ●Sleeve: Oxygen-free copper tube (electrolytic tin plated) ●Insulation: Polycarbonate Caution: ●For copper wire only. ●Please use within the wire clamping range. ●Please use the applicable crimping tool specified by our company.
