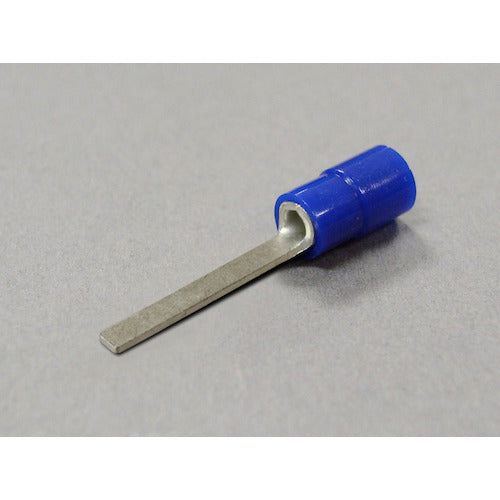

Nichifu Environmentally Friendly Insulated Crimp Terminal (BT Type) Rod Type TMEX BT-2-18-BLU (100P) TMEX BT-2-18-BLU 1 PK

Catalog number: TMEX BT-2-18-BLU Features: ●The insulating coating is pre-set in the terminal tube. ●Insulation shape: The TME type has a wire insertion guide (funnel-shaped) on the inside of the insulating coating. ●The core wire can be smoothly inserted into the tube along the guide with the coating stripped without twisting. ●Since it is a non-halogen material, it does not generate toxic halogen gases or corrosive gases when burned. Applications: ●For connecting stranded wires of soft steel. Specifications: ● Wire clamping range Stranded wire ([MM2]): 1.04 to 2.63 ● Wire clamping range AWG: 16-14 ● Color: Blue ● Total length (mm): 28.5 ● Inner dimensions (mm): 4.5 ● Shape: Blade type ● Maximum operating temperature (℃): 120 ● Rated voltage (V): 600 ● Dimensions (mm): 0.85 ● External dimensions (mm): 2.2 ● Not compatible with solid wire ● Operating temperature range: -40℃ to 120℃ ● RoHS 10 substance compliant
