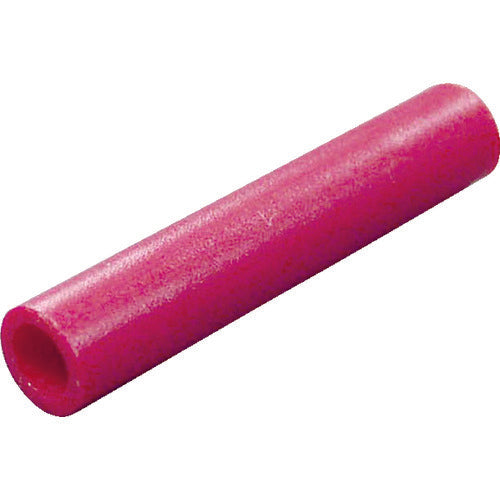

Nichifu Insulated Crimp Sleeve B Type (100P) TGV B-1.25-RED 1 PK

Catalog number: TGV B-1.25-RED Features: ●Connect the wires by butting them together inside the sleeve. ●The insulating coating is pre-set in the terminal tube. ●Insulation shape: The insulating tube is expanded. Applications: ●For connecting stranded wires of soft steel. Specifications: ●Wire clamping range Stranded wire (mm2): 0.3-1.65 ●Wire clamping range AWG: 22-16 ●Color: Red ●Total length (mm): 25.5 ●External diameter (mm): 3.2 ●Inner dimension (mm): 1.8 ●JIS standard product: × ●Sleeve inner dimension (mm): 1.8 ●B type ●Compatible tools: Tools for crimp terminals and sleeves with insulating coating Materials/Finish: ●Terminal: Oxygen-free copper (electrolytic tin plating) ●Sleeve: Oxygen-free copper tube (electrolytic tin plating) ●Insulation: Polyvinyl chloride Caution: ●For copper wire only. ●Use within the wire clamping range. ●Please use the appropriate crimping tool specified by our company.
