Nichifu Insulated Crimp Terminal R Type (100 Pieces) Stranded Wire 1.04-2.63 TGV 2-3S-BLU 1 PK

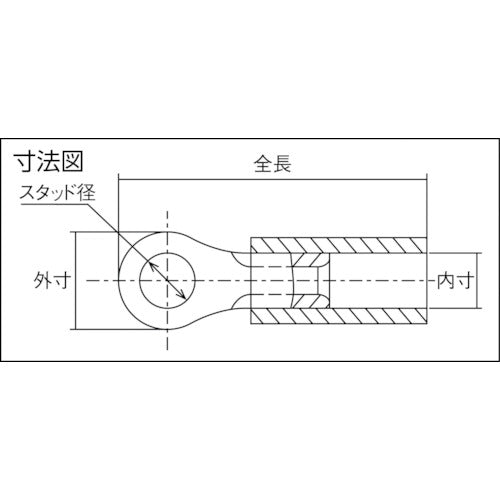

Catalog number: TGV 2-3S-BLU Features: ● An insulated crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● For connecting soft steel stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 1.04-2.63 ● Wire clamping range AWG: 16-14 ● Color: Blue ● Stud diameter (mm): 3.2 ● Total length (mm): 17.8 ● Inner dimensions (mm): 3.9 ● JIS standard product: × ● Rated voltage (V): 300 ● External dimensions (mm): 5.7 ● Insulated crimp terminal (round) Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ● Insulation: Polyvinyl chloride Caution: ● Used to connect soft copper stranded wires. ● Use within the wire clamping range. ● Use the applicable crimping tool specified by our company.
