Nichifu Insulated Crimp Terminal R Type (100 Pieces) Stranded Wire 2.63-4.6 TGV 3.5-4-YEL 1 PK

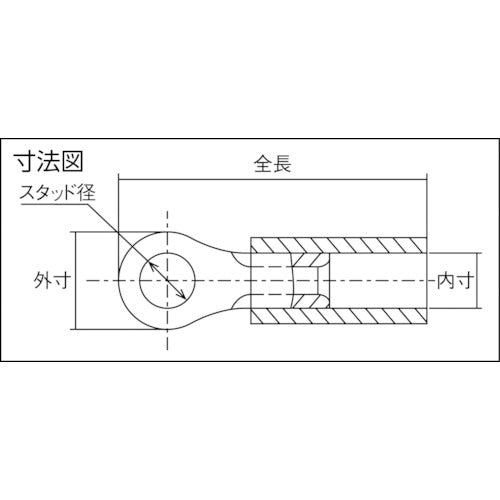

Catalog number: TGV 3.5-4-YEL Features: ● An insulated crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● For connecting soft steel stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 2.63 to 4.6 ● Wire clamping range AWG: 12 ● Color: Yellow ● External dimension (mm): 8 ● Stud diameter (mm): 4.3 ● Total length (mm): 26 ● Internal dimension (mm): 5 ● JIS standard product: × ● Rated voltage (V): 300 ● External dimension (mm): 8 ● Insulated crimp terminal (round) Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ● Insulation: Polyvinyl chloride Caution: ● Used to connect soft copper stranded wires. ● Use within the wire clamping range. ● Use the applicable crimping tool specified by our company.
